Part Number: 14166

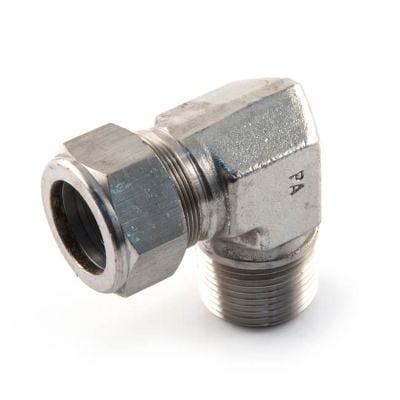

Stainless Steel Male Stud Elbow - 1/4" x 1/2"
1/4" Compression x 1/2" BSP TM Stainless steel twin ferrule male stud elbow designed for high pressure, vacuum and where vibration is inherent. The compression size refers to the outside diameter (size) of the tube which accepts the fitting.
Product Specification
Manufactured/Approved To | BS EN ISO 9001:2008 |
Angle | 90° |
Connection | Compression x BSP Taper |
Equal/Reducing | Reducing |
Fitting Type | Elbow |
Gender | M |
Material | 316 Stainless Steel |
Operating Pressure | Maximum working pressure range at 30°C : up to 375 bar. |
Size | 1/4" |
Type | Elbow |
