Part Number: 14159

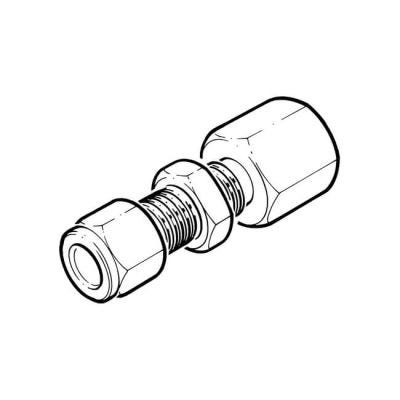

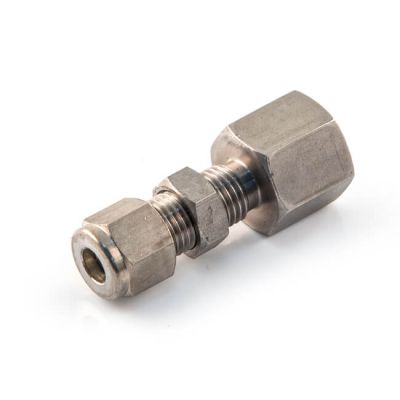

Stainless Steel Bulkhead Female Connector - 1/4"
1/4" x 1/4" Stainless Steel Twin Ferrule Bulkhead Female Connector Compression x BSP Parallel fittings have been designed for high pressures, vacuums, and where vibration is inherent. These fittings are precisely machined to close tolerances. Manufactured in the UK by a BS EN ISO 9001:2008 registered company. The imperial compression sizes given refer to the size (outside diameter) of the tube which accepts the fitting.
Product Specification
Colour | Self Colour |
Connection | Compression x BSP Parallel |
Fitting Type | Bulkhead Connector |
Material | Stainless Steel |
Operating Pressure | Maximum working pressure range at 30°C : up to 1/4" 400 bar, 3/8" - 1/2" 375 bar, 3/4" 250 bar, 1" 180 bar. |
Size | 1/4" |
Type | Bulkhead Connector |
