Part Number: 7346

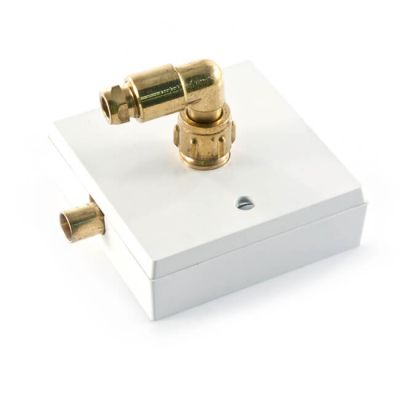

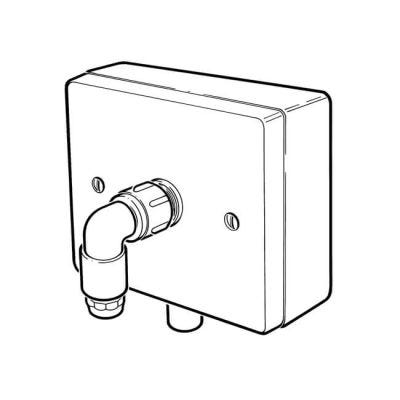

Outlet Boxed Rigid Fix 10/12mm Inlet x 10mm Self Colour

The rigid fix connector is used to provide a connection from the wall to a gas fire, light or heater. With a self-sealing valve in the connector, gas passes when elbow is pushed in and the ribbed compression nut is tightened. When undone and the elbow moved outwards the gas is cut off. The elbow may be rotated and tightened in any position.
The inlet is an end feed union, either 12 mm male and 10 mm female or 8 mm male and 6 mm female. The outlet can be 8 mm, 10 mm or 12 mm compression or 15 mm end feed.
To Be Discontinued

This item will be discontinued soon

Product Specification

Colour Self Colour
Connection End Feed / Compression
Material Brass
Suitable Application The Rigid Fix Connector Is Used To Provide A Connection From The Wall To A Gas Fire, Light Or Heater.
Type Rigid Fix

Ask a Question

Questions and Answers - FAQ

Outlet Boxed Rigid Fix 10/12mm Inlet x 10mm Self Colour

£10.82 £9.02
£10.82 £9.02

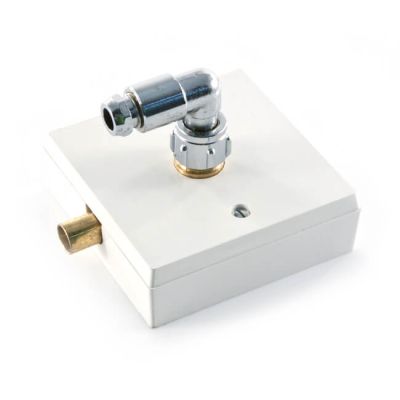

More product options available

Product Options
