Butane Pigtail 20" NR Butane Nut x 7/16" Whit

£13.33 £11.11
£13.33 £11.11
More product options available

Part Number: 12647

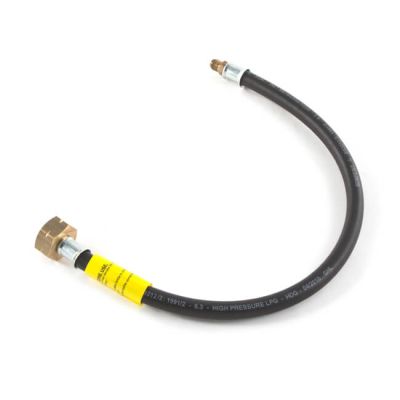

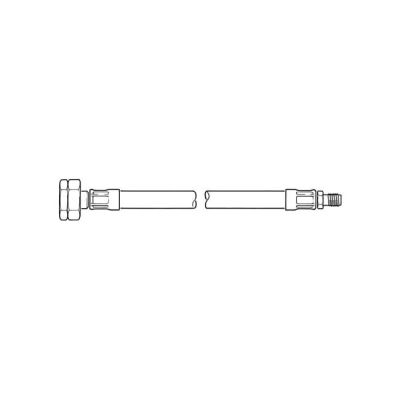

Butane Pigtail 20" NR Butane Nut x 7/16" Whit

20" N/R butane nut and tail x 7/16" whit with inverted flare.

High pressure black hose to (and marked) BS 3212:1991 Type 2. 6.3 mm i.d., 15.5 mm o.d., 20 bar working pressure, 69 bar burst pressure. A self adhesive advisory label is attached to every hose. Red labels for those fitted with full non-return/excess flow valve fittings and a yellow label for other assemblies. S/T indicates straight through and N/R indicates a non-return/excess flow valve. For Butane only.

Product Specification

Application Butane
Braiding Unbraided
Standards BS 3212:1991 Type 2
Burst Pressure 69 bar
Colour Black
Connection N/R Butane Nut x 7/16" Whit with Inverted Flare
Gas Type Butane
Inside Diameter 6.3 mm
Length 20"
N/R or S/T N/R
Operating Pressure Working pressure: 20 bar
Outside Diameter 15.5 mm
Suitable Application Butane
Type Pigtail Assembly
