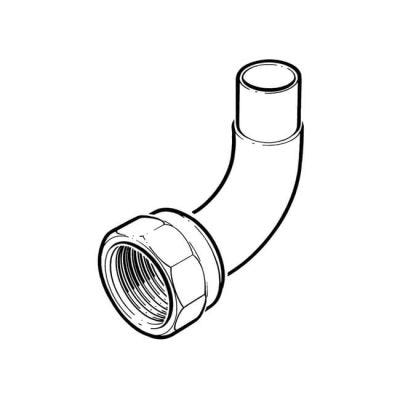

End Feed Bent Cylinder Union 28mm x 1.1/4" Union Nut

Name: End Feed Bent Cylinder Union 28mm x 1.1/4" Union Nut
Brand: BESt range
SKU: 6758
Price: 12.98 GBP
Availability: InStock

28 mm x 1.1/4" BSP union nut, bent cylinder union with cone joint to BS 1010.
End feed fitting to BS 864-2:1983 or BS EN 1254:1998.

BSP Explained

BES Ltd., British Standard Pipe Thread Identification Chart.

BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.

Further advice can be obtained from our Technical Team if you are still unsure.

BSP Size	Actual Diameter of Thread
1/8"	9.728 mm
1/4"	13.157 mm
3/8"	16.662 mm
1/2"	20.995 mm
3/4"	26.441 mm
1"	33.249 mm
1 1/4"	41.910 mm
1 1/2"	47.803 mm
2"	59.614 mm
2 1/2"	75.184 mm
3"	87.884 mm

The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.

PLEASE NOTE: This item will require soldering to connect it

Product Specification

Standards	Manufactured to BS 864 : Part 2 where applicable.
Connection	Female Copper x BSP
Fitting Type	Cylinder Union
Material	Copper
Size	28 mm
Standard	BS 1010
Type	Cylinder Union
