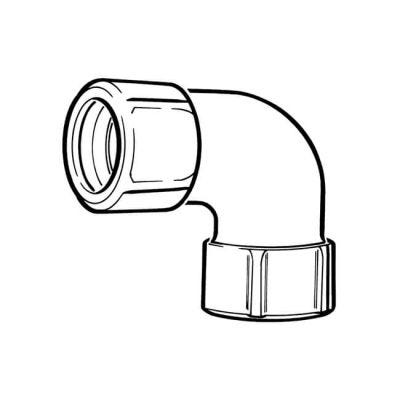

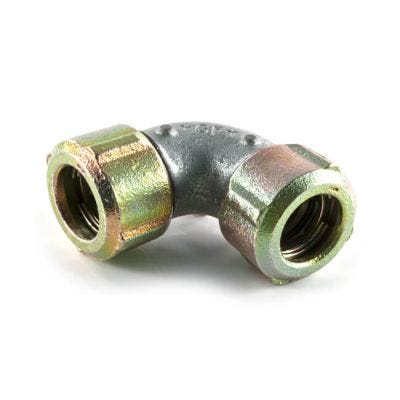

Primofit® Firejoint Elbow - 2"

Name: Primofit® Firejoint Elbow - 2"
Brand: Primofit
SKU: 15469
Price: 162.08 GBP
Availability: InStock

The PRIMOFIT® firejoint system uses the same casting bodies and nuts as the standard system, the main difference is the inclusion of a graphite seal.

The seal is not affected by the heat that it could be subjected to during a fire. Its main purpose is to maintain the end load capability of the joint if the rubber seal degrades during a fire thus providing a sound joint both during and after a fire.

Under test conditions at 75 mbar, 40°C working temperature, the joint must withstand a temperature of 850°C for 30 minutes. For Natural Gas laterals and riser sinside and outside buildings.

The system was specifically designed to enable gas to be supplied to blocks of flats or apartments up to a 40 metre riser height without the need for conventional screwed or welded joints.

Approvals - British Gas for internal and external use on above-ground steel gas pipes - DIN-DVGW (HTB).Made by a BS EN ISO 9001 registered company.

All fittings galvanised.

For Natural Gas and LPG.

Couplings - Firejoint

Elbows - FireJoint
Steel x Steel

BSP Explained

BES Ltd., British Standard Pipe Thread Identification Chart.

BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.

Further advice can be obtained from our Technical Team if you are still unsure.

BSP Size	Actual Diameter of Thread
1/8"	9.728 mm
1/4"	13.157 mm
3/8"	16.662 mm
1/2"	20.995 mm
3/4"	26.441 mm
1"	33.249 mm
1 1/4"	41.910 mm
1 1/2"	47.803 mm
2"	59.614 mm
2 1/2"	75.184 mm
3"	87.884 mm

The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.

Product Specification

Brand	Primofit
Sub Brand	Primofit Firejoint
Standards	BS EN ISO 9001
Colour/Finish	Steel
Connection	Steel
Finish	Galvanised
Material	Malleable Iron
Operating Temperature	40°C
Size	2"
Suitable Application	The system was specifically designed to enable gas to be supplied to blocks of flats or apartments up to a 40 metre riser height without the need for conventional screwed or welded joints
Type	Elbow
