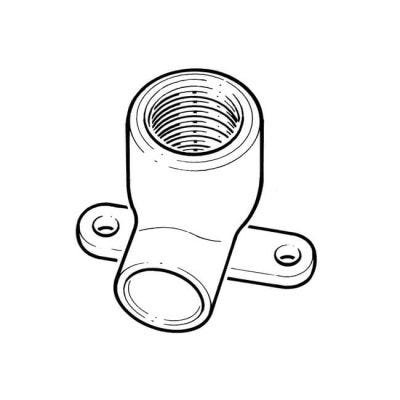

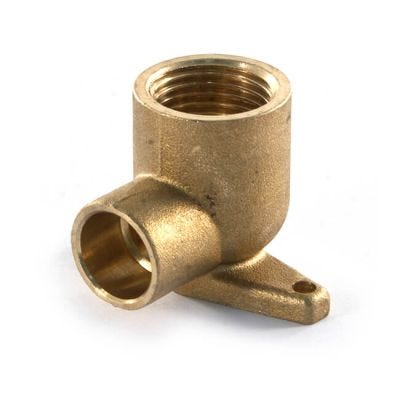

End Feed Angled Wallplate Adaptor 22mm x 3/4" BSP F
The End Feed Angled Wallplate Adaptor is a versatile plumbing component designed to connect and mount your pipes in various piping systems. Featuring a 3/4" BSP parallel female and 22mm female connection, ensuring compatibility with standard plumbing fittings. This can then be mounted securely to a wall or surface to ensure a secure and stable setup.
Meeting stringent standards, the adaptor boasts a threaded BSP design conforming to BS 21 specifications, ensuring precision and reliability in plumbing applications. Its end feed fitting adheres to either BS 864-2 or BS EN 1254, guaranteeing compliance with industry regulations and standards.
Manufactured from a durable brass and bronze materials in accordance with EN 1254-4, this adaptor offers robust construction for long-lasting performance in diverse plumbing environments. The use of high-quality materials ensures resistance to corrosion and wear, contributing to the adaptor's durability and longevity.
The End Feed Angled Wallplate Adaptor combines precision engineering, durable construction, and adaptability for a reliable solution for plumbing connections. This adaptor provides a dependable and secure connection between 3/4" BSP parallel female and 22mm female threads, meeting the highest industry standards.
Angled wallplate fixing for a neat and tidy installation
Made from brass material
Compatible with 22mm & 3/4” BSP pipes
PLEASE NOTE: This item will require soldering to connect it
BSP Explained
×
BES Ltd., British Standard Pipe Thread Identification Chart.
BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.
Further advice can be obtained from our Technical Team if you are still unsure.
BSP Size
Actual Diameter of Thread
1/8"
9.728 mm
1/4"
13.157 mm
3/8"
16.662 mm
1/2"
20.995 mm
3/4"
26.441 mm
1"
33.249 mm
1 1/4"
41.910 mm
1 1/2"
47.803 mm
2"
59.614 mm
2 1/2"
75.184 mm
3"
87.884 mm
The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.
