Part Number: 7776

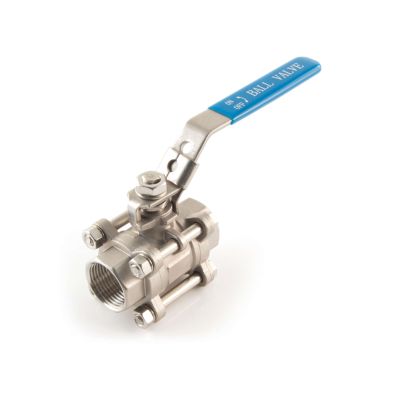

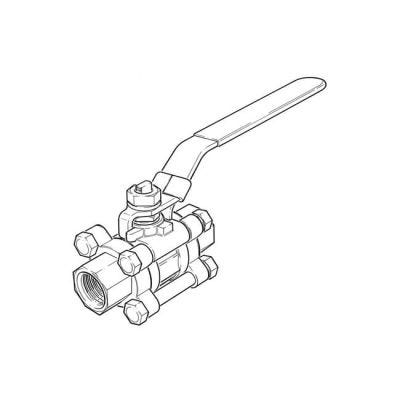

Stainless Steel Ball Valve - 3 Piece 1.1/4" BSP PF
Ball valve with stainless steel body, unions, ball, spindle, and handle. PTFE seals. High quality 3 piece design means that maintenance and servicing of the valve can be carried out by simply unbolting the body and leaving the ends attached to the pipe. Blue handles.
For Water, Oil & Gas.
For Water, Oil & Gas.
Product Specification
| Standards | BS 21 - ASME B16.34 - API 598/GB/T13927-92 |
| Application | Water, Oil & Gas |
| Connection | BSP Parallel F x F |
| Full Bore | Yes |
| Handle | Lever |
| Handle Colour | Blue |
| Lockable | No |
| Material | Stainless Steel |
| Max. Operating Pressure | 69 bar |
| Seal Type | PTFE |
| Size | 1.1/4" |
| Temperature Range | -29 to 230°C |
| Type | Stainless Steel Ball Valve |
