Part Number: 10849

Manufacturer's Part Number: 775452203

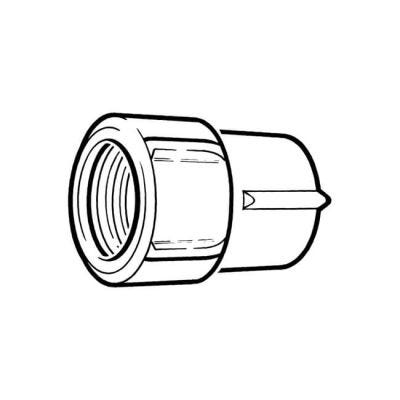

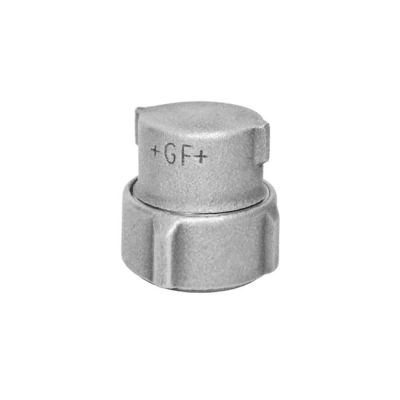

Primofit® Cap - 32mm MDPE Galvanized

Compression cap for MDPE gas pipe. BS EN 10255:2004 (BS 1387:1985), DIN 2440/2441/2442/2448 Series 1 or 2458 Series 1).
Fittings are made by a BS EN ISO 9001:2008 registered company.
The pipe is inserted into the fitting to the predetermined length and the nut tightened, no special tools are required. Instructions are supplied with each fitting.
Fittings for use with MDPE pipes are supplied complete with insert stiffeners.

Suitable for Natural Gas and LPG.

Maximum pressure at 20°C is 7 bar (maximum operating pressure is dependent on MDPE pipe specification and standard).

Product Specification

Brand Primofit
Standards BS EN 10255:2004 (BS 1387:1985), DIN 2440/2441/2442/2448 Series 1 Or 2458 Series 1
Colour Galvanised
Connection MDPE
Finish Galvanised
Material Malleable Iron - Galvanised
Pressure 7 Bar
Size 32 Mm
Sub Brand Primofit
Suitable Application To Join Yellow Gas MDPE Pipe Together Or Transition; I.e To Join Yellow Gas MDPE Pipe To Steel Pipe
Temperature Range -20°C To 40°C
Type Cap
