Stainless Steel Overbraid Pigtail 35" ST POL x ST POL

£39.49 £32.91
£39.49 £32.91
More product options available

Part Number: 13499

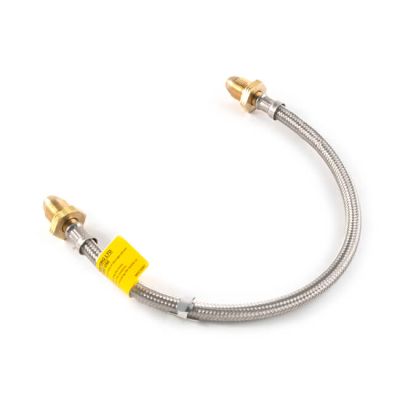

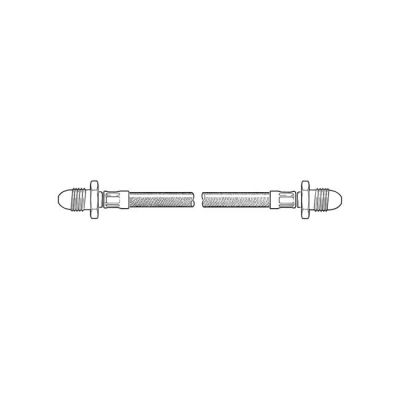

Stainless Steel Overbraid Pigtail 35" ST POL x ST POL

35" S/T POL + 5/8" LH nut x S/T POL.

High pressure black hose to (and marked) BS 3212:1991 Type 2. 6.3 mm i.d., 15.5 mm o.d., 20 bar working pressure, 69 bar burst pressure. Stainless steel ferrules and stainless steel overbraid suitable for seagoing craft. A self-adhesive advisory label is attached to every hose. White labels for those fitted with full non- return/excess flow valve fittings and a yellow label for other assemblies. S/T indicates straight through and N/R indicates a non-return/excess flow valve. For Propane only.

Product Specification

Application Propane
Braiding Braided
Standards BS 3212:1991 Type 2
Burst Pressure 69 bar
Connection S/T POL + 5/8" LH Nut x S/T POL
Gas Type Propane
Inside Diameter 6.3 mm
Length 35"
Material Stainless Steel Overbraid
N/R or S/T S/T
Operating Pressure Working pressure: 20 bar
Outside Diameter 15.5 mm
Suitable Application Seagoing craft
Type Pigtail Assembly
