Part Number: 13081

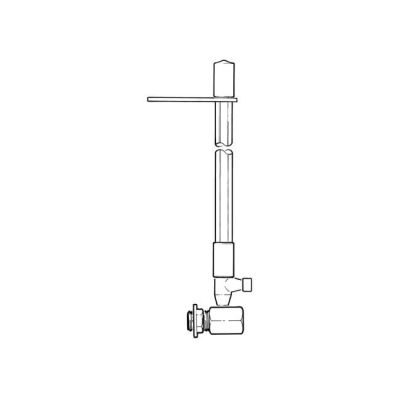

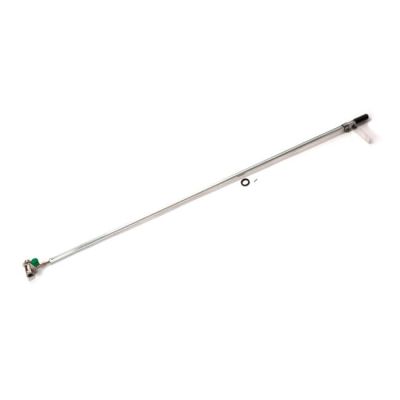

Push Button Oil Sight Gauge - 4' x 1/2"
These gauges give a clear reading of tank contents. Unbreakable sight tube supplied in lengths to suit tank depth. Fitted with a self-closing valve designed to comply with BS 799 Part 2. The unit has been accepted by major oil companies.
Specification :
Top cap : protection against insects and dust
Top clip : to provide upper support for sight tube, (supplied with self tapping fixing screws)
Sight tube : clear P.V.C.
Coupler :
a push fit onto the sight tube shield to cover the valve nipple
Operation : push button to indicate oil level
Tank connection : union complete with locknut
Union size : 1/2" BSP M
Specification :
Top cap : protection against insects and dust
Top clip : to provide upper support for sight tube, (supplied with self tapping fixing screws)
Sight tube : clear P.V.C.
Coupler :
a push fit onto the sight tube shield to cover the valve nipple
Operation : push button to indicate oil level
Tank connection : union complete with locknut
Union size : 1/2" BSP M
WEIGHT & SIZE RESTRICTIONS
Some delivery options may not be available
Product Specification
| Standards | BS 799-2 |
| Connection | 1/2" BSP PM |
| Finish | PVC |
| Gauge Material | PVC |
| Length | 4 ft |
| Material | PVC |
| Size | 1/2" |
| Suitable Application | To check oil tank level |
| Type | Level Gauge |
