Part Number: 24008
Manufacturer's Part Number: PRO1KIT
Multi-function flue gas analyser with a high contrast backlit colour screen and large function buttons; fitted with Li-ion rechargeable battery and moulded protective cover with built-in magnets.
Fuel options: natural gas, LPG, heavy oil, light oil, coal, wood, wood pellet dry, coke, Biomass and Bagasse. Measures and calculates O2, CO, CO2, CO/CO2 ratio, excess air, temperature and efficiency. Performs CO build up tests. Instant print facility or save to memory (stores over 300 readings).
Fuel options: natural gas, LPG, heavy oil, light oil, coal, wood, wood pellet dry, coke, Biomass and Bagasse. Measures and calculates O2, CO, CO2, CO/CO2 ratio, excess air, temperature and efficiency. Performs CO build up tests. Instant print facility or save to memory (stores over 300 readings).
PLEASE NOTE: THESE ITEMS WILL BE DELIVERED DIRECT FROM OUR SUPPLIER OWING TO INSTRUMENT CALIBRATION. UK DELIVERY WILL BE UP TO 7 DAYS - BUT USUALLY WITHIN 3 DAYS. ORDER CANCELLATION MAY INCUR CHARGES.
See More >
WEIGHT & SIZE RESTRICTIONS
Some delivery options may not be available
DIRECT DISPATCH
This item will be delivered direct from the supplier
Product Specification
Brand | Anton |
Standards | EN 50379-1, EN 50379-3- BS 7967 |
Battery Life | Up to 14 hrs |
CO Range | Calculated range: 0 to 21%, Resolution: 0.1%, Accuracy: ±0.3% |
Dimensions | Analyser: H 183 x W 85 x D 50 mm |
Flue Temperature | Range: 5° C to 400° C, Resolution: 1° C, Accuracy: ±2° C or 1.5% of reading |
Gas Measurements | Measures and calculates O₂, CO, CO₂, CO/CO₂ ratio, excess air, temperature and efficiency. |
Hose Length | 2.146 m |

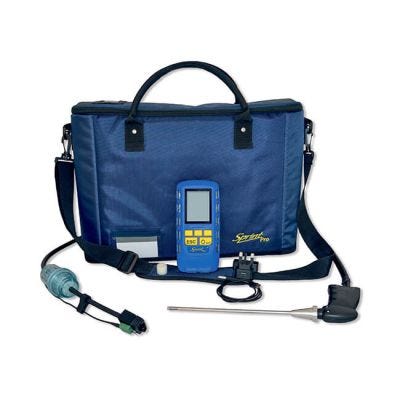

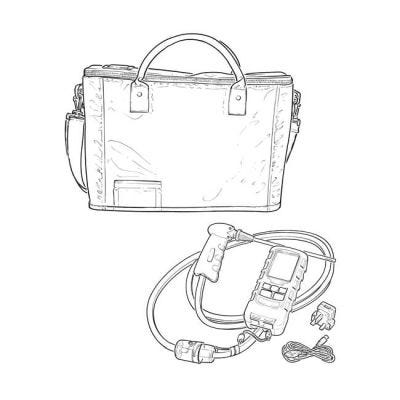

Kit Contents | Flue Gas Analyser, flue probe (pistol grip with stainless steel shaft, thermocouple, in line water trap with water block and dust filters, bespoke connector with secondary in-built water block filter), IR printer, pipe clamp temperature probe, USB charger, USB-C lead, drop in bag with handles and adjustable shoulder strap. |
Max. Temperature | K-Type thermocouple measurement range: -50° C to 1000° C, Accuracy: ±2° C or 1.5% of reading |
Operating Temperature | -10°C to 50°C |
Power Supply | Li-ion rechargeable battery |
Suitable Application | Fuel options: natural gas, LPG, heavy oil, light oil, coal, wood, wood pellet dry, coke, Biomass and Bagasse. |
Type | Flue Gas Analyser |
Type of Analyser | Boiler Flue Gas |
Weight | 490 g |
