Part Number: 24013
Manufacturer's Part Number: PRO3KITA
Anton Sprint Pro3 Flue Gas Analyser Kit A
Fuel options : natural gas, LPG, heavy oil, light oil, coal, wood, wood pellet dry, coke, Biomass and Bagasse. Measures and calculates O₂, CO, CO₂, CO/CO₂ ratio, excess air, temperature and efficiency. Performs CO build up and ambient tests (BS 7967:2015) and pressure tests including Let by and Tightness. Instant print facility or save to memory (stores over 300 readings).
USB comms to work with Windows based Sprint Pro PC software.
BSI tested to EN 50379-1:2012 & EN 50379-3:2012.
PLEASE NOTE: THESE ITEMS WILL BE DELIVERED DIRECT FROM OUR SUPPLIER OWING TO INSTRUMENT CALIBRATION. UK DELIVERY WILL BE UP TO 7 DAYS - BUT USUALLY WITHIN 3 DAYS. ORDER CANCELLATION MAY INCUR CHARGES.
WEIGHT & SIZE RESTRICTIONS
Some delivery options may not be available
This item will be delivered direct from the supplier
|Battery Life||Up to 14 hrs|
|CO Range||Calculated range: 0 to 21%, Resolution: 0.1%, Accuracy: ±0.3%|
|Differential Pressure||Range: 0 to 400 mbar, Resolution: 0.01 mbar, Accuracy: ±0.5 mbar or 1% of reading|
|Dimensions||Analyser: H 183 x W 85 x D 50 mm|
|Flue Temperature||Range: 5° C to 400° C, Resolution: 1° C, Accuracy: ±2° C or 1.5% of reading|
|Gas Measurements||Measures and calculates O₂, CO, CO₂, CO/CO₂ ratio, excess air, temperature and efficiency.|
|Hose Length||2.146 m|

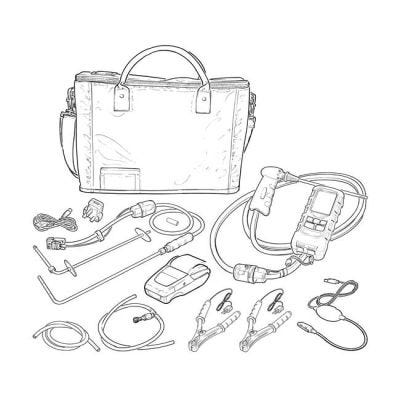

|Kit Contents||Flue Gas Analyser,
flue probe (pistol grip with stainless steel shaft, thermocouple, in line water trap with water block and dust filters, bespoke connector with secondary in-built water block filter),
gas escape probe with LED light,
Anton Pressure Relief Valve (APRV),
2 pipe clamp temperature probes,
drop in bag with handles and adjustable shoulder strap.
|Max. Temperature||K-Type thermocouple measurement range: -50° C to 1000° C, Accuracy: ±2° C or 1.5% of reading|
|Operating Temperature||-10°C to 50°C|
|Power Supply||Li-ion rechargeable battery|
|Suitable Application||Fuel options: natural gas, LPG, heavy oil, light oil, coal, wood, wood pellet dry, coke, Biomass and Bagasse.|
|Type||Flue Gas Analyser|
|Type of Analyser||Boiler Flue Gas|
