Part Number: 24020

Manufacturer's Part Number: PRO5KITB

Anton Sprint Pro5 Flue Gas Analyser Kit B

Multi-function flue gas analyser with Bluetooth to connect to a free Sprint Mobile app on iOS and Android devices, NO sensor for NO and NOx measurements in FGA mode, high contrast backlit colour screen and large function buttons; fitted with Li-ion rechargeable battery and moulded protective cover with built-in magnets.
Fuel options: natural gas, LPG, heavy oil, light oil, coal, wood, wood pellet dry, coke, Biomass and Bagasse. Measures and calculates O₂, CO, CO₂, CO/CO₂ ratio, excess air, temperature and efficiency. Performs CO build up and ambient tests (BS 7967:2015) and pressure tests including Let by and Tightness. Instant print facility or save to memory (stores over 300 readings).
USB comms to work with Windows based Sprint Pro PC software.
BSI tested to EN 50379-1:2012 & EN 50379-3:2012.
PLEASE NOTE: THESE ITEMS WILL BE DELIVERED DIRECT FROM OUR SUPPLIER OWING TO INSTRUMENT CALIBRATION. UK DELIVERY WILL BE UP TO 7 DAYS - BUT USUALLY WITHIN 5 DAYS. ORDER CANCELLATION MAY INCUR CHARGES.
WEIGHT & SIZE RESTRICTIONS

Some delivery options may not be available

DIRECT DISPATCH

This item will be delivered direct from the supplier

Product Specification

Battery Life Up To 14 Hrs
Brand Anton
CO Range Calculated Range: 0 To 21%, Resolution: 0.1%, Accuracy: ±0.3%
Differential Pressure Range: 0 To 400 Mbar, Resolution: 0.01 Mbar, Accuracy: ±0.5 Mbar Or 1% Of Reading
Dimensions Analyser: H 183 X W 85 X D 50 Mm
Draught Yes
Flue Temperature Range: 5° C To 400° C, Resolution: 1° C, Accuracy: ±2° C Or 1.5% Of Reading
Gas Measurements Measures And Calculates O₂, CO, CO₂, CO/CO₂ Ratio, Excess Air, Temperature And Efficiency.
Hose Length 2.146 M

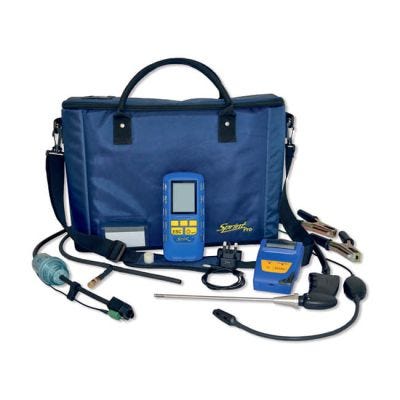

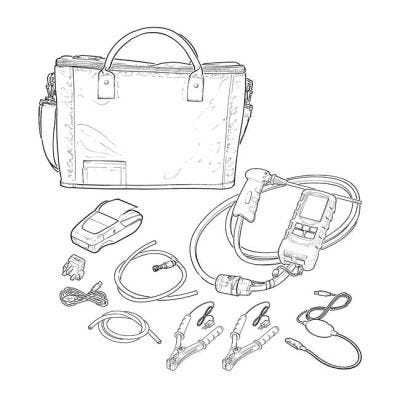

Kit Contents Flue Gas Analyser,
flue Probe (pistol Grip With Stainless Steel Shaft, Thermocouple, In Line Water Trap With Water Block And Dust Filters, Bespoke Connector With Secondary In-built Water Block Filter),
pressure Hose,
gas Escape Probe With LED Light,
Pro BS 7967 Probe Set,
IR Printer,
Anton Pressure Relief Valve (APRV),
2 Pipe Clamp Temperature Probes,
USB Charger,
USB-C Lead,
drop In Bag With Handles And Adjustable Shoulder Strap.
Max. Temperature K-Type Thermocouple Measurement Range: -50° C To 1000° C, Accuracy: ±2° C Or 1.5% Of Reading
Operating Temperature -10° C To 50° C
Power Supply Li-ion Rechargeable Battery
Suitable Application Fuel Options: Natural Gas, LPG, Heavy Oil, Light Oil, Coal, Wood, Wood Pellet Dry, Coke, Biomass And Bagasse.
Type Flue Gas Analyser
Type Of Analyser Boiler Flue Gas
Weight 490 G
