Part Number: 24023
Manufacturer's Part Number: PRO6KITB
Anton Sprint Pro6 Flue Gas Analyser Kit B
Multi-function flue gas analyser with Bluetooth to connect to a free Sprint Mobile app on iOS and Android devices, dual beam infra-red CO₂ sensor for direct measurement of ambient air for COMCAT and CMDDA1 testing, NO sensor for NO and NOx measurements in FGA mode, high contrast backlit colour screen and large function buttons; fitted with Li-ion rechargeable battery and moulded protective cover with built-in magnets.
Fuel options: natural gas, LPG, heavy oil, light oil, coal, wood, wood pellet dry, coke, Biomass and Bagasse. Measures and calculates O₂, CO, CO₂, CO/CO₂ ratio, excess air, temperature and efficiency. Performs build up and ambient tests (BS 7967:2015) and pressure tests including Let by and Tightness. Instant print facility or save to memory (stores over 300 readings). USB comms to work with Windows based Sprint Pro PC software.
BSI tested to EN 50379-1:2012 & EN 50379-3:2012.
PLEASE NOTE: THESE ITEMS WILL BE DELIVERED DIRECT FROM OUR SUPPLIER OWING TO INSTRUMENT CALIBRATION. UK DELIVERY WILL BE UP TO 7 DAYS - BUT USUALLY WITHIN 5 DAYS. ORDER CANCELLATION MAY INCUR CHARGES.
WEIGHT & SIZE RESTRICTIONS
Some delivery options may not be available
This item will be delivered direct from the supplier
|Battery Life||Up to 14 hrs|
|CO Range||Calculated range: 0 to 21%, Resolution: 0.1%, Accuracy: ±0.3%|
|Differential Pressure||Range: 0 to 400 mbar, Resolution: 0.01 mbar, Accuracy: ±0.5 mbar or 1% of reading|
|Dimensions||Analyser: H 183 x W 85 x D 50 mm.|
|Flue Temperature||Range: 5° C to 400° C, Resolution: 1° C, Accuracy: ±2° C or 1.5% of reading|
|Gas Measurements||Measures and calculates O₂, CO, CO₂, CO/CO₂ ratio, excess air, temperature and efficiency.|
|Hose Length||2.146 m|

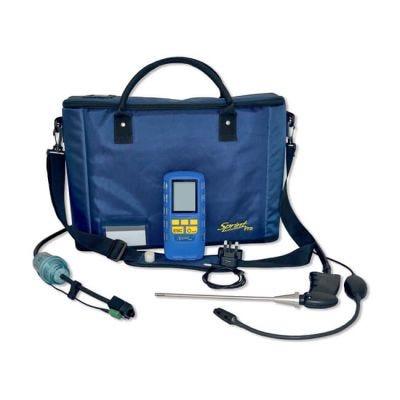

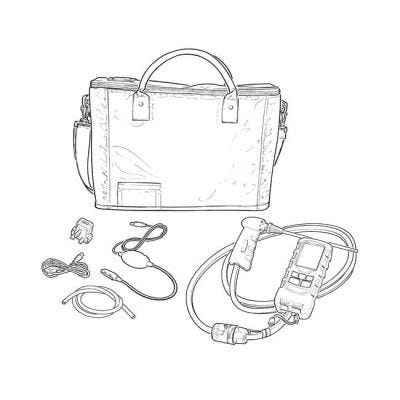

|Kit Contents||Flue Gas Analyser,
flue probe (pistol grip with stainless steel shaft, thermocouple, in line water trap with water block and dust filters, bespoke connector with secondary in-built water block filter),
gas escape probe with LED light,
Pro BS 7967 probe set,
Anton Pressure Relief Valve (APRV),
2 pipe clamp temperature probes,
drop in bag with handles and adjustable shoulder strap.
|Max. Temperature||K-Type thermocouple measurement range: -50° C to 1000° C, Accuracy: ±2° C or 1.5% of reading|
|Operating Temperature||-10°C to 50°C|
|Power Supply||Li-ion rechargeable battery|
|Suitable Application||Fuel options: natural gas, LPG, heavy oil, light oil, coal, wood, wood pellet dry, coke, Biomass and Bagasse.|
|Type||Flue Gas Analyser|
|Type of Analyser||Boiler Flue Gas|
