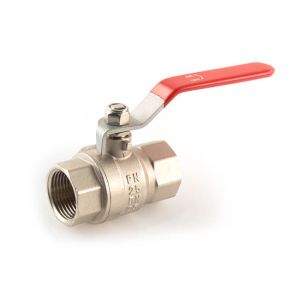

Ball Valve - 1.1/2" BSP PF Red Lever Handle

Name: Ball Valve - 1.1/2" BSP PF Red Lever Handle
Brand: Unbranded
SKU: 8119
Price: 29.69 GBP
Availability: InStock

The Ball Valve - 1.1/2" BSP PF with Red Lever Handle is designed for reliable operation in hot and cold water services, ensuring seamless control over fluid flow. This full bore ball valve features a robust brass body with a plated finish, providing both durability and a polished aesthetic.

Approved by WRAS and manufactured in accordance with BS EN ISO 9001 standards, this valve guarantees quality and performance. The lever handle, finished in a striking red, allows for easy operation and quick access to flow control, making it user-friendly for various applications.

With a maximum operating temperature of 80°C and a nominal pressure rating of 25 bar at this temperature, the valve is suitable for a wide range of plumbing systems. The full bore design enhances flow efficiency, minimising pressure drops and ensuring optimal performance.

The Ball Valve - 1.1/2" BSP PF combines a durable brass construction, WRAS approval, user-friendly red lever operation, and high-pressure resilience, making it an essential component for both domestic and commercial water services.

Alternative Options available.

Benefits

Robust brass construction ensures long-lasting durability
Plated finish adds an attractive touch and protects against corrosion
Full bore design allows for maximum flow efficiency
WRAS approved for compliance with water regulations
Easy-to-use red lever handle simplifies flow control
Suitable for hot and cold water services
Maximum operating temperature of 80°C
Nominal pressure rating of 25 bar (at 80°C)

BSP Explained

BES Ltd., British Standard Pipe Thread Identification Chart.

BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.

Further advice can be obtained from our Technical Team if you are still unsure.

BSP Size	Actual Diameter of Thread
1/8"	9.728 mm
1/4"	13.157 mm
3/8"	16.662 mm
1/2"	20.995 mm
3/4"	26.441 mm
1"	33.249 mm
1 1/4"	41.910 mm
1 1/2"	47.803 mm
2"	59.614 mm
2 1/2"	75.184 mm
3"	87.884 mm

The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.

Product Specification

Approved by	WRAS
Manufactured/Approved To	BS EN ISO 9001
Application	Hot and cold water services.
Connection	BSP Parallel F x F
Finish	Plated
Full Bore	Yes
Handle	Lever
Handle Colour	Red
Lockable	No
Material	Brass
Max. Operating Temperature	80°C
Pressure Range	Nominal pressure: 25 bar at 80°C
Size	1.1/2"
Type	Full Bore Ball Valve
WRAS Approved	Approval Number: 2007007
