Part Number: 23869
Manufacturer's Part Number: 124-8013

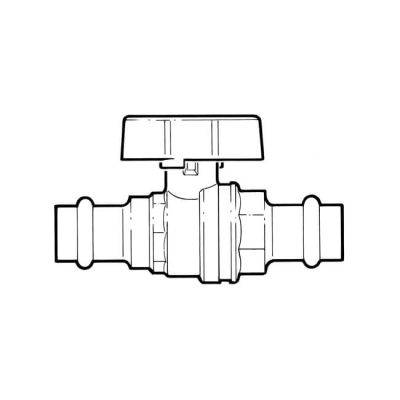

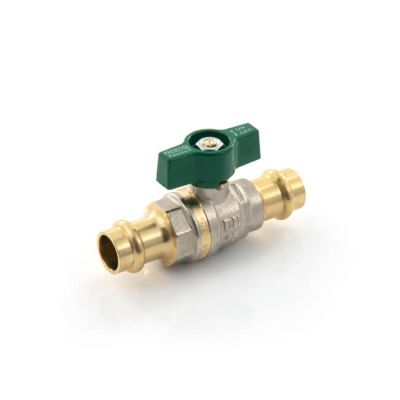

Ball Valve - 15mm Press-fit, Butterfly Handle
Ball Valve - 15mm Press-fit, Butterfly Handle
Full bore brass body ball valve designed for use on hot and cold water services, vented and unvented closed circuit heating applications. Connections have a Leak Before Press feature to indicate if joint has not been pressed. Press tongs with either M or V profile can be used.
WRAS approved product.
Full bore brass body ball valve designed for use on hot and cold water services, vented and unvented closed circuit heating applications. Connections have a Leak Before Press feature to indicate if joint has not been pressed. Press tongs with either M or V profile can be used.
WRAS approved product.
Product Specification
Brand | BESt range |
Approved by | WRAS Approved Product |
Standards | BS EN 13547:2013 |
Connection | B Press |
Designation | Water |
Finish | Part Plated |
Handle | Butterfly |
Handle Colour | Green |
Lockable | No |
Material | Brass |
Max. Operating Pressure | 40 bar |
Max. Operating Temperature | 120° C |
Pressure Range | 40 bar at 20° C, 5 bar at 110° C |
Pressure Rating | 40 bar |
Size | 15 mm |
Suitable Application | Water in copper tube to BS EN 1057 half hard (R250). |
Type | Full Bore Ball Valve |
