Bulk Discounts Available

QTY	Price per pack	Saving
50+	£3.96 £3.30	10%

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part Number: 8114

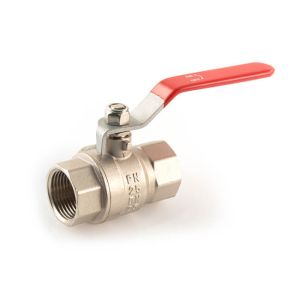

Ball Valve - 3/8" BSP PF Red Lever Handle

Name: Ball Valve - 3/8" BSP PF Red Lever Handle
Brand: Unbranded
SKU: 8114
Price: 3.67 GBP
Availability: InStock

BS EN 10226-1 WRAS approved full bore ball valve, brass body with plated finish and red lever handle.
Manufactured by a BS EN ISO 9001 registered company.

BSP Explained

BES Ltd., British Standard Pipe Thread Identification Chart.

BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.

Further advice can be obtained from our Technical Team if you are still unsure.

BSP Size	Actual Diameter of Thread
1/8"	9.728 mm
1/4"	13.157 mm
3/8"	16.662 mm
1/2"	20.995 mm
3/4"	26.441 mm
1"	33.249 mm
1 1/4"	41.910 mm
1 1/2"	47.803 mm
2"	59.614 mm
2 1/2"	75.184 mm
3"	87.884 mm

The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.

Product Specification

Approved by	WRAS
Manufactured/Approved To	BS EN ISO 9001
Application	Hot and cold water services.
Connection	BSP Parallel F x F
Finish	Plated
Full Bore	Yes
Handle	Lever
Handle Colour	Red
Lockable	No
Material	Brass
Max. Operating Temperature	80°C
Pressure Range	Nominal pressure: 25 bar at 80°C
Size	3/8"
Type	Full Bore Ball Valve
WRAS Approved	Approval Number: 2007007
