Part Number: 8806

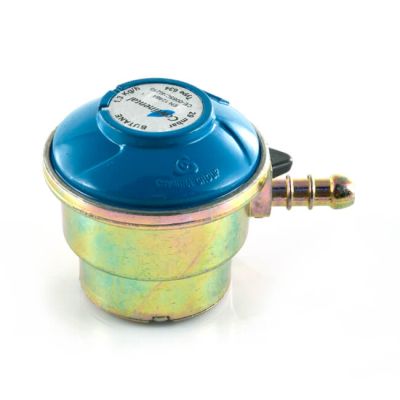

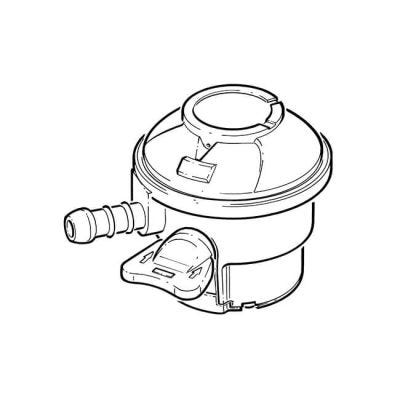

Butane Low Pressure Regulator - 1 kg/hr
21 mm clip on x hose nozzle, single stage regulator to EN 12864:2001.
Nozzle accepts 8 mm (5/16") bore tubing.
Nozzle accepts 8 mm (5/16") bore tubing.
Product Specification
| Capacity | 1 Kg/h |
| Connection | Clip On X Hose Nozzle |
| Flow Rate | 1 Kg/h |
| Inlet | 21 Mm Clip On |
| Inlet Pressure | 7.5 Bar Max. |
| Operating Pressure | 29 Mbar |
| OPSO | No |
| Outlet Connection | 8 Mm (5/16") Bore Hose Nozzle |
| Outlet Pressure | 29 - 30 Mbar |
| Pressure Release Valve | No |
| Pressure Test Point | No |
| Size | 21 Mm Clip-on |
| Stage | Single |
| Suitable Application | Butane Low Pressure |
| Type | Single Stage Low Pressure |
| UPSO | No |
