Part Number: 12644

Butane Pigtail Assembly 20" NR Butane Nut x W20

N/R Butane Nut x W20 Nut and Tail.

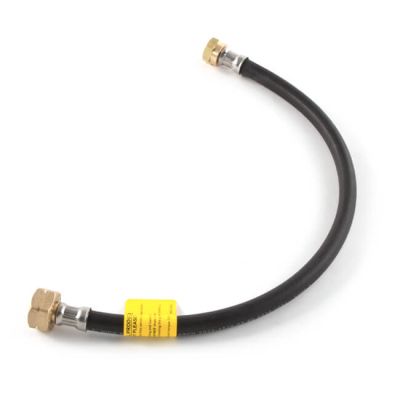

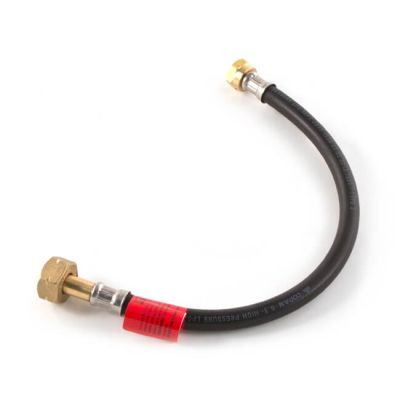

High pressure black hose to (and marked) BS 3212:1991 Type 2. 6.3 mm i.d., 15.5 mm o.d., 20 bar working pressure, 69 bar burst pressure. A self adhesive advisory label is attached to every hose. Red labels for those fitted with full non-return/excess flow valve fittings and a yellow label for other assemblies. S/T indicates straight through and N/R indicates a non-return/excess flow valve. For Butane only.

Product Specification

Application Butane
Braiding Unbraided
Standards BS 3212:1991 Type 2
Burst Pressure 69 Bar
Colour Black
Connection N/R Butane Nut X W20 Nut + Tail
Gas Type Butane
Inside Diameter 6.3 Mm
Length 20"
N/R Or S/T N/R
Operating Pressure Working Pressure: 20 Bar
Outside Diameter 15.5 Mm
Suitable Application Butane
Type Pigtail Assembly
