Part Number: 19081

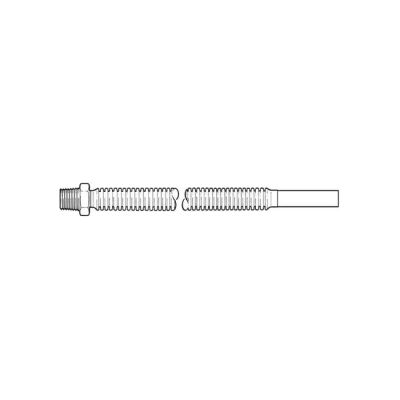

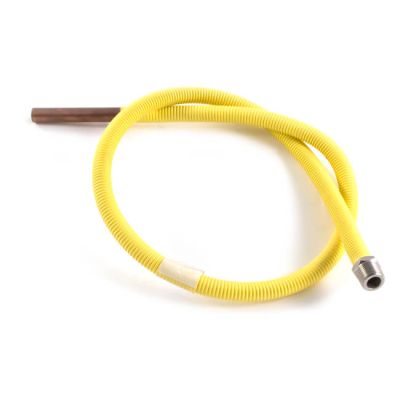

Caravan LPG Hose Assembly 1m - 1/2" x 22mm
BSP T M union x standpipe.
Convoluted 321 stainless steel flexible hose to ISO 10380: 2003, one end welded 3/4" union stainless steel nipple with plated nut and adaptor (adaptor either 1/2" or 3/4" BSP TM) other end 15 mm or 22 mm copper tube x 100 mm long. Assembly covered with yellow PVC cover. Maximum working pressure 1/2" - 7 bar 3/4" - 3 bar; burst pressure 1/2" - 28 bar and 3/4" - 12 bar.
20 year replacement date and ISO standard marked. Main application is for the connection of a gas supply to static caravans and residential park homes
|Connection||BSP TM Union X Standpipe|
|Inside Diameter||19.5 Mm (3/4") I.d.|
|Material||Stainless Steel, PVC Cover|
|Operating Pressure||Maximum Working Pressure : 3 Bar|
|Suitable Application||Connection Of A Gas Supply To Static Caravans And Residential Park Homes.|
