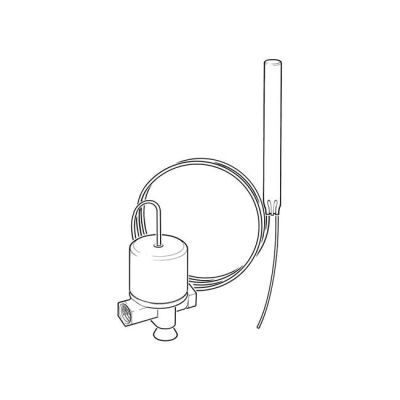

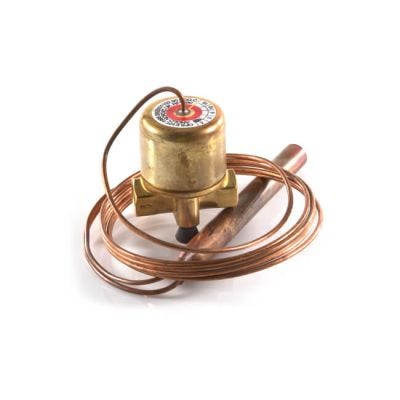

CFV Capillary Fire Valve 90°C 6.0m - 1/4"

The CFV (remote fire valve) is a capillary type fire valve designed to automatically shut off the fuel flow to an oil burning appliance in the event of an overheat condition, failure of the valve capillary or sensor phial. All CFV models are suitable for use with suction or gravity fuel systems at -0.8 bar (-12 psi) vacuum and 2 bar (30 psi) positive head. This unit is suitable for use with Class C and D fuel oils as well as bio fuel blends up to B35. Tested to OFTEC standard OFS E101 ; OFCERT No. 0953 101101. Threads: 1/4" BSP female.

Product Specification

Standards	OFS E101
Manufactured/Approved To	Tested to OFTEC standard OFS E101 ; OFCERT No. 0953 101101
Connection	1/4" BSP Female
Size	1/4" BSP
Suitable Application	The CFV (remote fire valve) is a capillary type fire valve designed to automatically shut off the fuel flow to an oil burning appliance in the event of an overheat condition, failure of the valve capillary or sensor phial
Temperature	90°C
Type	Fire Valve
