Part Number: 18360
Manufacturer's Part Number: DFD

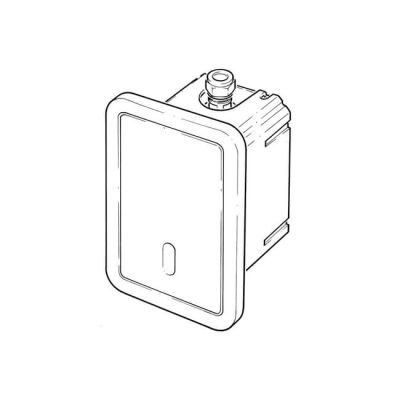

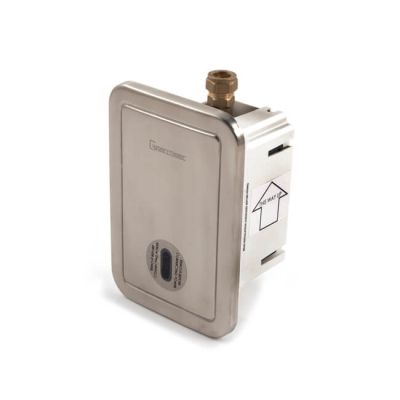

The unit is for installation where access can be gained to an available wall cavity. Valve is mounted on pipework behind wall/panel with either mains or battery supply. Infra-red sensor located and installed above bowl. WRAS approved.
Dimensions:
Sensor : 48 mm Diameter x 27 mm Deep.
Valve : 180 mm x 41 mm x 82 mm.
Flush Time : Factory Set 5 Seconds. Adjustable.
Maximum Working Pressure : 6 Bar.
Electrical Supply : 4 x 1.5 V AA (LR6) Batteries Or
5 V DC Mains Adaptor (Both Options Supplied).
Connections : 15 mm Compression.
Dimensions:
Sensor : 48 mm Diameter x 27 mm Deep.
Valve : 180 mm x 41 mm x 82 mm.
Flush Time : Factory Set 5 Seconds. Adjustable.
Maximum Working Pressure : 6 Bar.
Electrical Supply : 4 x 1.5 V AA (LR6) Batteries Or
5 V DC Mains Adaptor (Both Options Supplied).
Connections : 15 mm Compression.
Product Specification
Approved by | WRAS |
Brand | Cistermiser |
Connection | 15 mm Compression |
Dimensions | Sensor : 48 mm x 27 mm, Valve : 180 mm x 41 mm x 82 mm |
Flushing Volume | Flush Time : Factory Set 5 Seconds. Adjustable. Maximum Working Pressure : 6 bar. |
Height | 180 mm |
Sensor Option | Discreet |
Sub Brand | Istermiser |
Type | Infra-Red Urinal Flush Valve |
