Part Number: 8907
Manufacturer's Part Number: 002205

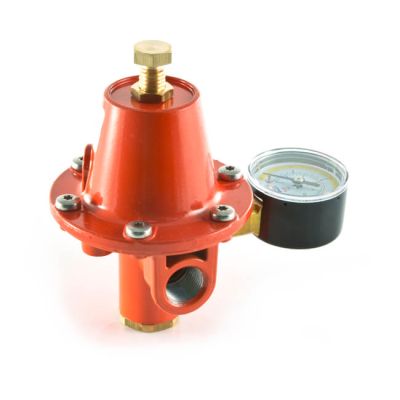

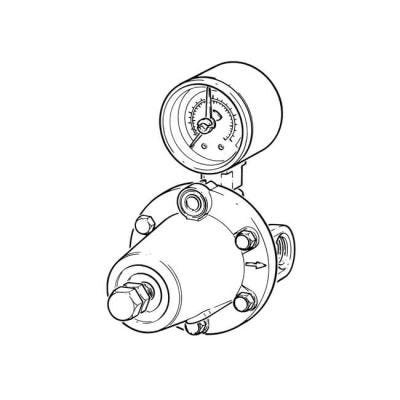

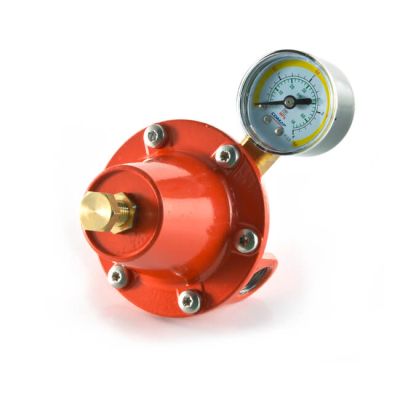

1/4" BSP propane high pressure regulator (first stage) with gauge.
Capacity: 18kg (855 000 Btu) per hour.
Inlet pressure: 1-19 bar.
Adjustable operating pressure: 1-3 bar (0-44 p.s.i.).
250KWProduct Specification
Ambient Temperature | -20 to 60°C |
Brand | Clesse |
Standards | BS EN 13785 |
Capacity | 18 kg/h |
Connection | BSP |
Flow Rate | 18 kg/h |
Inlet | 1/4" BSP F |
Inlet Pressure | Max: 16 bar |
Operating Pressure | 1 to 3 Bar |
OPSO | No |
Outlet Connection | 1/4" BSP F |
Pressure Release Valve | No |
Pressure Test Point | No |
Size | 1/4" BSP F x 1/4" BSP F |
Stage | First |
Sub Brand | Clesse |
Suitable Application | Propane High Pressure |
Type | First Stage High Pressure |
UPSO | No |
