Part Number: 21475
Manufacturer's Part Number: UU6827AA/BR

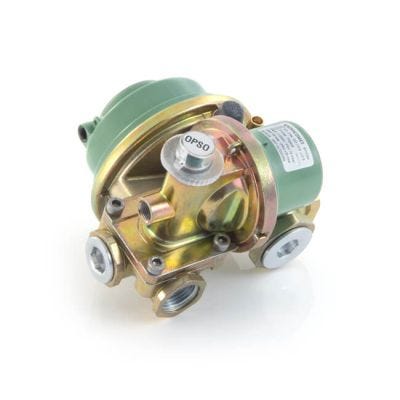

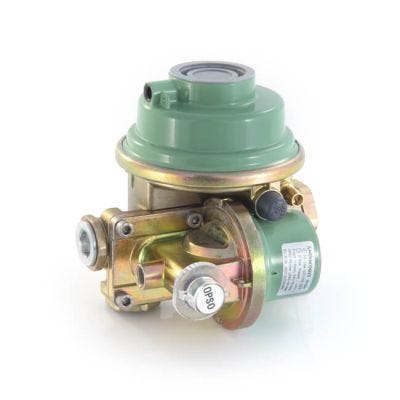

Clesse Propane Low Pressure Regulator - 10.5 kg/hr
Clesse UPSO/OPSO wall mounted 2nd stage regulator. Manufactured in the EU to BS EN 16129.
Capacity: 10.5 kg (493,500 Btu) per hour.
Operating pressure: 37 mbar.
Inlet pressure: 0.45 to 2 bar.
OPSO: 100 mbar.
UPSO: 27 to 30 mbar.
Relief valve: 75 mbar.
Inlet: 1/2" BSP TF.
Outlet: 3/4" BSP TF.
Capacity: 10.5 kg (493,500 Btu) per hour.
Operating pressure: 37 mbar.
Inlet pressure: 0.45 to 2 bar.
OPSO: 100 mbar.
UPSO: 27 to 30 mbar.
Relief valve: 75 mbar.
Inlet: 1/2" BSP TF.
Outlet: 3/4" BSP TF.
Product Specification
| Ambient Temperature | -20 to 50°C |
| Brand | Clesse |
| Standards | BS EN 16129:2013 |
| Capacity | 10.5 kg/h |
| Connection | BSP |
| Flow Rate | 10.5 kg/h |
| Inlet | 1/2" BSP TF |
| Inlet Pressure | 0.45 - 2 bar |
| Operating Pressure | 37 mbar |
| OPSO | Yes |
| Outlet Connection | 3/4" BSP TF |
| Pressure Release Valve | No |
| Pressure Test Point | Yes |
| Size | 1/2" BSP TF x 3/4" BSP TF |
| Stage | Second |
| Sub Brand | Clesse |
| Suitable Application | Propane Low Pressure |
| Type | Second Stage Low Pressure |
| UPSO | Yes |
| Vent Position | Giro |
