Part Number: 8902
Manufacturer's Part Number: 001051AB

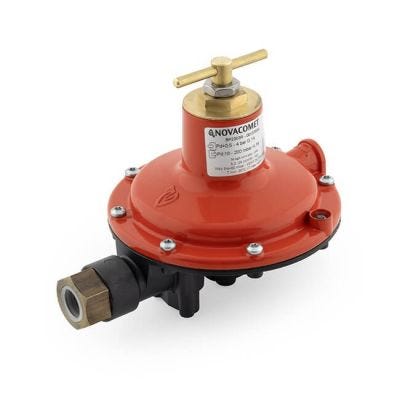

1/2" BSP F x 3/4" BSP F second stage regulator with fixed outlet pressure and integral relief valve.
Capacity : 30 kg (1 425 000 Btu) per hour.
Inlet pressure : 0.5 - 4 bar.
Product Specification
Ambient Temperature | -20 to 60°C |
Brand | Clesse |
Standards | BS EN 13785 |
Capacity | 30 kg/h |
Connection | BSP |
Fixed Operating Pressure | 37 mbar |
Flow Rate | 30 kg/h |
Inlet | 1/2" BSP TF |
Inlet Pressure | 0.5 - 4 bar |
Limited Relief Valve | 75 mbar |
Operating Pressure | 33 - 45 mbar |
OPSO | No |
Outlet Connection | 3/4" BSP TF |
Outlet Pressure | 37 mbar |
Pressure Release Valve | Yes |
Pressure Test Point | No |
Size | 1/2" BSP F x 3/4" BSP F |
Stage | Second |
Sub Brand | Clesse |
Suitable Application | Propane Low Pressure |
Type | Second Stage Low Pressure |
UPSO | No |
