Part Number: 21476
Manufacturer's Part Number: 006829FE

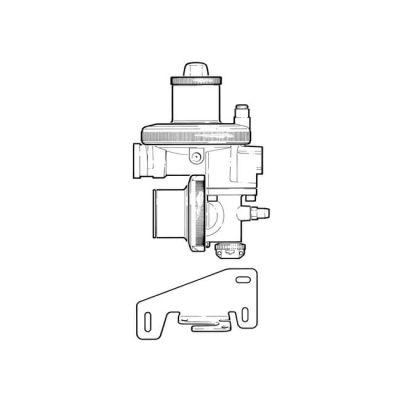

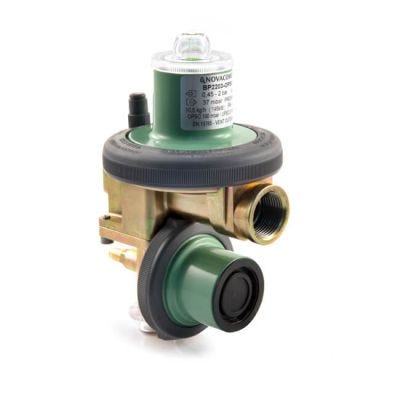

Clesse Propane Low Pressure Regulator - 9 kg/hr
BP2284 fixed vent, UPSO/OPSO 2nd stage regulator.
Manufactured in the EU to BS EN 16129.
Capacity: 9 kg/h (423,00 Btu/h).
Operating pressure: 37 mbar.
Inlet: 2 x 1/2" BSP TF one with plug.
Outlet: 3/4" BSP TF.
Inlet pressure: 0.3 to 2 bar.
UPSO: 27 to 30 mbar.
OPSO: 100 mbar.
Relief valve: 75 mbar.
Manufactured in the EU to BS EN 16129.
Capacity: 9 kg/h (423,00 Btu/h).
Operating pressure: 37 mbar.
Inlet: 2 x 1/2" BSP TF one with plug.
Outlet: 3/4" BSP TF.
Inlet pressure: 0.3 to 2 bar.
UPSO: 27 to 30 mbar.
OPSO: 100 mbar.
Relief valve: 75 mbar.
Product Specification
| Ambient Temperature | -20 to 50°C |
| Brand | Clesse |
| Standards | BS EN 16129:2013 |
| Capacity | 9 kg/h (423,00 Btu/h) |
| Connection | BSP |
| Flow Rate | 9 kg/h |
| Inlet | 2 x 1/2" BSP TF one with plug |
| Inlet Pressure | 0.3 to 2 bar |
| Operating Pressure | 37 mbar |
| OPSO | Yes |
| Outlet Connection | 3/4" BSP TF |
| Pressure Release Valve | No |
| Pressure Test Point | Yes |
| Size | 1/2" BSP TF x 3/4" BSP TF |
| Stage | Second |
| Sub Brand | Clesse |
| Suitable Application | Propane Low Pressure |
| Type | Second Stage Low Pressure |
| UPSO | Yes |
| Vent Position | Fixed |
