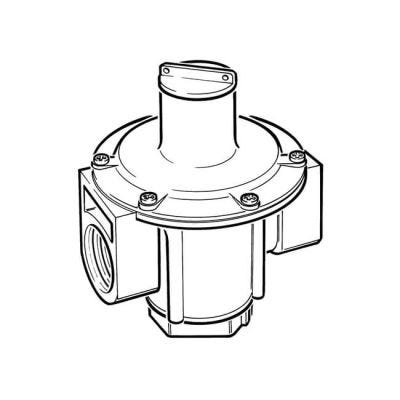

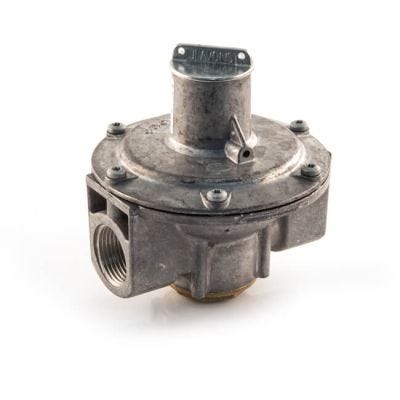

Elster Commercial/Industrial Regulator 1" F x F BSP
Regulator suitable for a wide range of commercial and industrial applications. May also be used for domestic meter service applications, with inlet pressures up to 75 mbar (30" wg), complying with British Gas specification. May be installed in horizontal or vertical pipelines. Meet the essential requirements of the European Gas Directive (90/396/EEC).
For Natural Gas and LPG.
Operating temperature range: -20 to 70°C.
Maximum inlet pressure: 75 mbar
The regulators are supplied as standard fitted with the BLACK springs giving outlet pressure: 1" regulators; 20-24 mbar (8"-9" wg).
If you require a different outlet pressure range, please order the spring you need in addition to the regulator. The outlet pressure may be easily adjusted within the stated range by turning the spring loading adjustment screw under the top cap.
Threads: BSP taper female to BS 21 (ISO 7-1).
Commercial/Industrial Springs
Springs are listed in the Product Options below. Colour coded as shown in the table. NOT fitted to a regulator.
P/N
Spring Colour
Outlet pressure ranges
6295
yellow
13-19 mbar
6296
black
20-24 mbar
6297
orange
27-32 mbar
6298
brown
37-46 mbar
BSP Explained
×
BES Ltd., British Standard Pipe Thread Identification Chart.
BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.
Further advice can be obtained from our Technical Team if you are still unsure.
BSP Size
Actual Diameter of Thread
1/8"
9.728 mm
1/4"
13.157 mm
3/8"
16.662 mm
1/2"
20.995 mm
3/4"
26.441 mm
1"
33.249 mm
1 1/4"
41.910 mm
1 1/2"
47.803 mm
2"
59.614 mm
2 1/2"
75.184 mm
3"
87.884 mm
The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.
