Part Number: 6292

Manufacturer's Part Number: 7805RA2

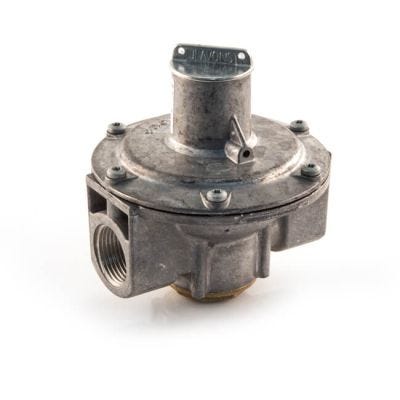

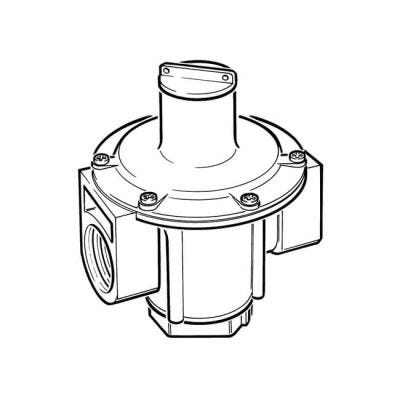

Elster Commercial/Industrial Regulator 3/4" F x F

Suitable for a wide range of commercial and industrial applications. May also be used for domestic meter service applications, with inlet pressures up to 75 mbar (30" wg), complying with British Gas specification. May be installed in horizontal or vertical pipelines. Meet the essential requirements of the European Gas Directive (90/396/EEC).

For Natural Gas and LPG.

Operating temperature range: -20 to 70°C.

Maximum inlet pressure: 75 mbar

The regulators are supplied as standard fitted with the BLACK springs giving outlet pressure: 3/4" regulators; 15-23 mbar (6"-9" wg).

If you require a different outlet pressure range, please order the spring you need in addition to the regulator. The outlet pressure may be easily adjusted within the stated range by turning the spring loading adjustment screw under the top cap.

Threads: BSP taper female to BS 21 (ISO 7-1).

Commercial/Industrial Springs

Springs are listed in the Product Options below. Colour coded as shown in the table. NOT fitted to a regulator.
P/N Spring Colour Outlet pressure ranges

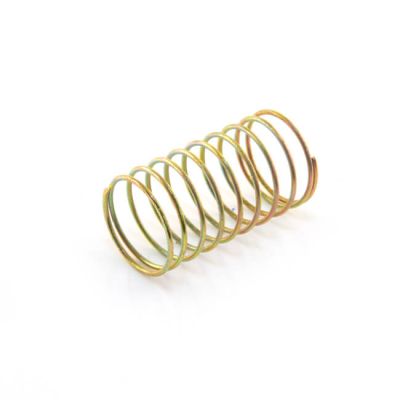

6295 yellow 9-17 mbar

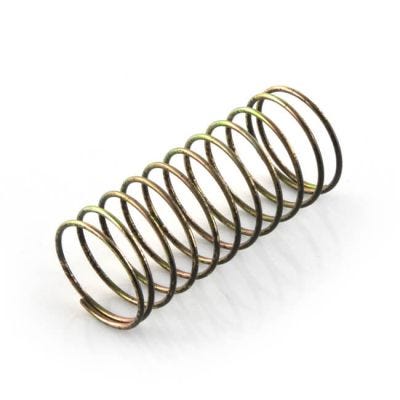

6296 black 15-23 mbar

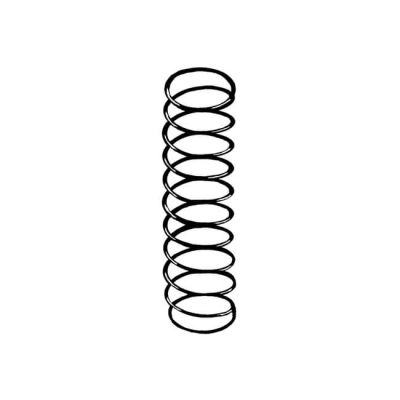

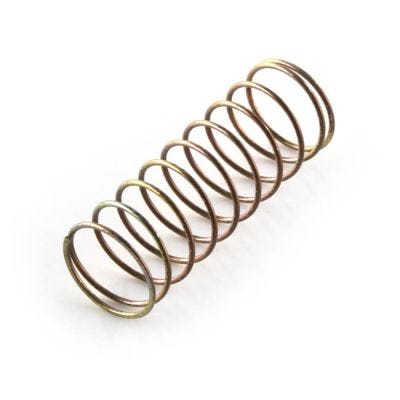

6297 orange 22-31 mbar
6298 brown 31-42 mbar

Product Specification

Brand Elster
Standards GAD 2009/142/EC
Connection 3/4" BSP TF
Inlet Pressure Max: 75 Mbar
Operating Temperature -20° C To 70° C
Outlet Pressure 15 To 23 Mbar
Pattern Straight
Size 3/4"
Sub Brand Elster
Suitable Application For A Wide Range Of Commercial And Industrial Applications
Type Regulator

Ask a Question

Questions and Answers - FAQ

Elster Commercial/Industrial Regulator 3/4" F x F

£49.15 £40.96
£49.15 £40.96
More product options available

Product Options
