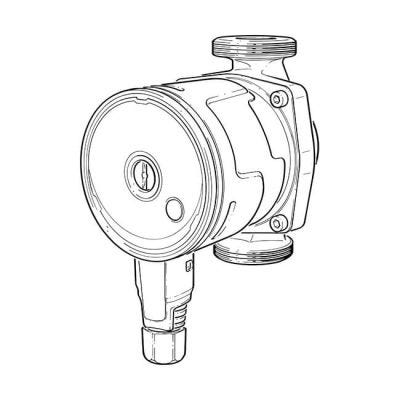

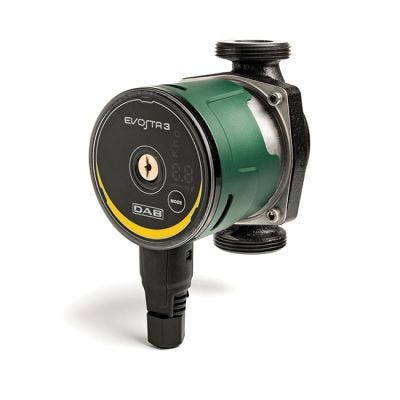

The DAB Evosta 3 80/130 Central Heating Circulator Pump is an advanced highly efficient circulator pump engineered for superior water circulation performance. With cutting-edge features, low energy consumption, and high head making ideal for even larger residential properties.

Featuring a 1.1/2" BSP M connection, this pump guarantees a secure fit, providing compatibility with standard plumbing configurations for ease of installation.

With an impressive Energy Efficiency Index (EEI) of ≤0.19, this pump sets a new standard for energy-conscious operation, promoting sustainability and cost-effectiveness.

The EVOSTA 80/130 ensures efficient performance with a maximum input power of 55 watts and can be controlled with three fixed speeds and six variable speeds. This allows users to tailor the pump's performance to meet specific system requirements.

Operating with an insulation class of F, the pump demonstrates high resistance to heat, ensuring reliable and safe performance and able to take liquid temperatures ranging from -10 to 110°C, making it suitable for a wide spectrum of applications.

With a 130 mm port-to-port distance a maximum head of 8 metres and the ability to operate under a maximum pressure of 10 bar, this pump delivers powerful water circulation while maintaining durability.

Constructed with a durable cast iron body, and boasting an IPX5 protection rating, the EVOSTA 80/130 ensures longevity and robustness, making it a reliable choice for long-term use.

The standard 230 V power supply simplifies installation with a 1.1/2" connection it provides a wide compatibility and ease of integration into different water circulation systems.

Elevate your water circulation system with the EVOSTA 80/130, where advanced technology meets efficiency. This pump is designed to deliver reliable, energy-efficient performance across a spectrum of applications, ensuring optimal water circulation in every cycle.

Compatible motorised valves and pump valves available.

Benefits

• Highly effective and energy-efficient
• 8 metre maximum head value
• Energy Efficiency Index (EEI) values of ≤ 0.19
• 1.1/2" BSP PM connection
• 130mm port-to-port measurement
• 3 fixed and 6 variable speed settings
• Operates on a standard 230 V AC, 50 Hz power supply
• Handles a temperature range from -10 to 110°C
