Part Number: 21101
DirtmagIQ Magnetic Strainer - 28mm

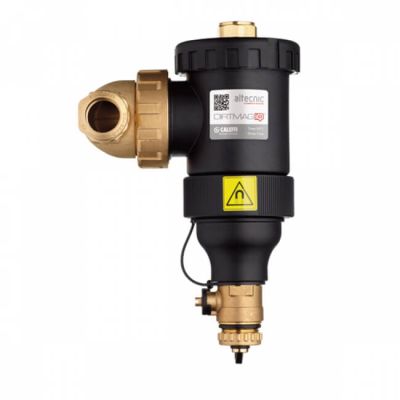

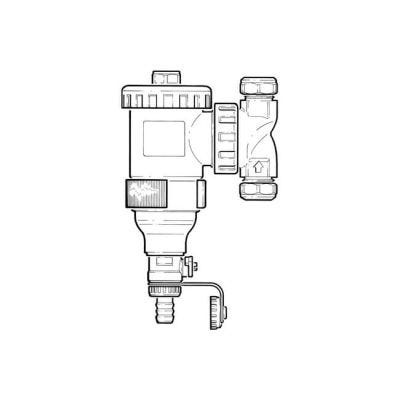

The DirtmagIQ magnetic strainer collects magnetic and suspended contaminants in a fluid based heating system. The multidirectional fit, rotating brass body has compression connections. The lightweight technopolymer housing has an air vent on top and is fitted with a removable magnetic belt. Strainer is flushed via a 3/4"full bore discharge valve with hose tail.
|Dimensions||H 238 X W 84 X 130 Mm Projection From Pipe Centre.|
|Max. Operating Pressure||3 Bar|
|Temperature Range||0 To 90°C|
