Part Number: 20960

Itron CF Echo II Ultrasonic Heat Meter DN20 3/4" BSP M

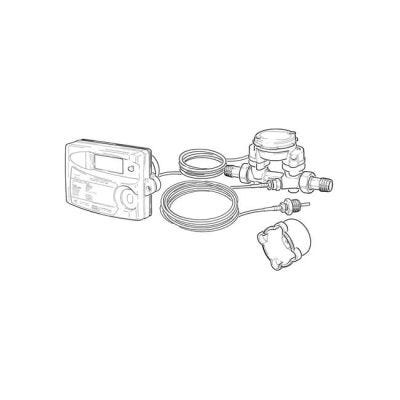

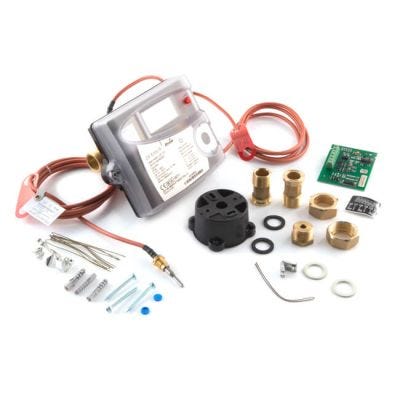

The CF Echo II is a compact Ultrasonic heat meter suitable for solar, (not suitable for glycol ) hot and cold water installations with electronic data processing, producing a dynamic range exceeding Class C. Flows can be measured from Qp 1.5 to 15 m3/h (DN15 to DN50) with stable accuracy. The meter kit consists of a lithium battery powered energy calculator with Mbus/pulse output, two temperature sensors with 1.7 m leads and an Ultrasonic water meter with BSP threaded unions, nuts and washers. Energy calculator can be meter or wall mounted within 1.3 m with signal cable supplied and its lithium battery has a 10 to 12 year life depending on usage. Meter to be installed with 5 pipe diameters of straight pipe before the inlet. Complies with RHI, EN 1434 Class 2, MID approved.

Product Specification

Accessories Calculator With Mbus/Pulse Output, Two Temperature Sensors With 1.7 M Leads And An Ultrasonic Water Meter With BSP Threaded Unions, Nuts And Washers
Application Heat Meter Suitable For Solar, (not Suitable For Glycol ) Hot And Cold Water Installations With Electronic Data Processing, Producing A Dynamic Range Exceeding Class C
Brand Itron
Standards RHI, EN 1434 Class 2, MID
Connection BSP M
Dimensions Calculator: 119 Mm X 149 Mm X 55 Mm
Flow Rate 3 M³/h
Length 130 Mm (Inc. Unions: 210 Mm)
Material Plastic
Max. M3/H Flow Qs M3/h: 3
Max. Operating Pressure Working: 16 Bar
Max. Operating Temperature 130°C
Meter Dimensions 130 Mm X 90 Mm
Nominal M3/H Flow Qp M3/h: 1.5
Power Supply Lithium Battery
Pressure Loss 0.21
Size DN20, 3/4"
Type Heat Meter
Weight 1.2 Kg
