Part Number: 11397

Manufacturer's Part Number: DD010

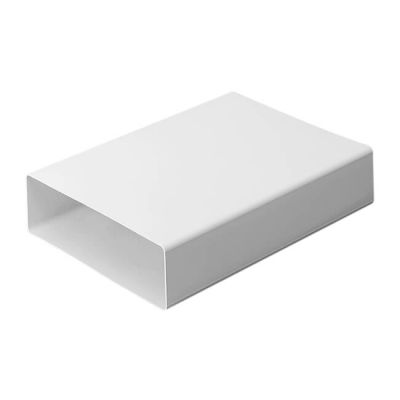

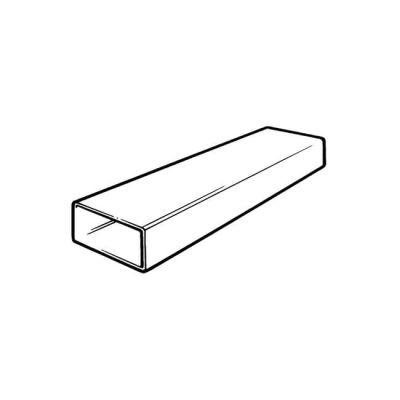

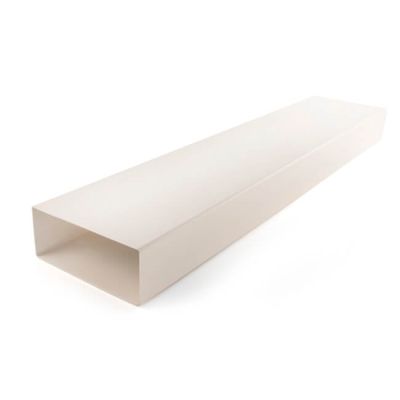

Domus System 100 Flat Channel - 1m

DOMUS specialise in the design and manufacture of modular system parts for the ventilation of domestic kitchens and bathrooms. The range includes flat channel ducting for installation in confined spaces and round systems for use where space is not a restriction and efficiency is the main concern. Lightweight construction, with simple push-fit connections for quick installation.

System 100, 110 mm x 54 mm requires min. space of 115 x 60 mm. 60°C max. working temperature. All internal System parts are cadmium free and are made from self-extinguishing materials to meet DIN 4102/81 UL 94 V2.

WEIGHT & SIZE RESTRICTIONS

Some delivery options may not be available

Product Specification

Brand Domus
Standards DIN 4102/81 UL 94 V2
Colour White
Dimensions 110 Mm × 54 Mm
Fitting Type Push Fit
Length 1000 Mm
Material Thermoplastic
Max. Temperature 60°C
Min. Space Required 115 Mm × 60 Mm
Size 110 Mm X 54 Mm
Sub Brand System 100
Type Flat Channel
