Part Number: 12524
Draughtbuster DB Centurion Ventilator Brown/White

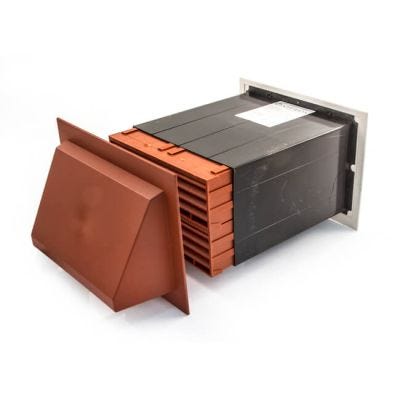

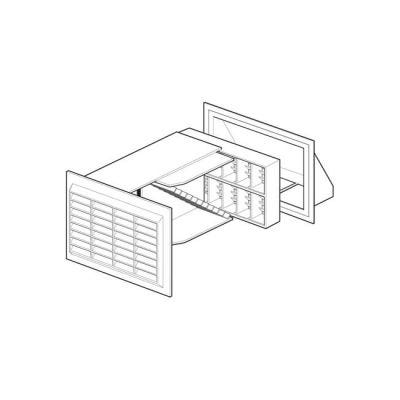

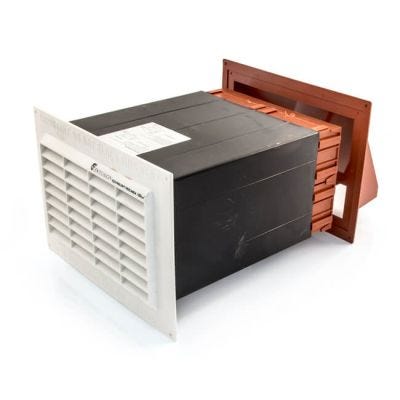

Ventilators designed to reduce draught and muffle outside noises to the maximum. Daylight does not show through them. Simple three part assembly (cowls - liner - and internal louvre). Designed to be fitted with screws or mastic. All Draughtbusters meet BS 5440-2, BS 493 and BS 5871-3 requirements.
Fits through a 9" x 6" opening. Equivalent free area of min. 100cm2
Wall thickness : 280 mm to 330 mm (11" to 13").
For appliances up to 27 kW Net,(30 kW Gross).
Fits through a 9" x 6" opening. Equivalent free area of min. 100cm2
Wall thickness : 280 mm to 330 mm (11" to 13").
For appliances up to 27 kW Net,(30 kW Gross).
See More >
Product Specification
| Brand | Draughtbuster |
| Standards | BS 5440-2, BS 493 and BS 5871-3 |
| Colour | Brown |
| Dimensions | External Grille 195 mm x 270 mm , Internal Grille 194 mm x270 mm |
| Free Area | 100 cm² |
| Free Area Size | 100 cm² |
| Input Power | 27 kW net, (30 kW gross) |
| Tube Diameter | 145 mm x 220 mm (9"x6") |
| Type | Two Brick Ventilator |
| Wall Thickness | 280 to 330 mm (11" to 13"). |
