Part Number: 12523
Draughtbuster DB Centurion Ventilator Terracotta/White

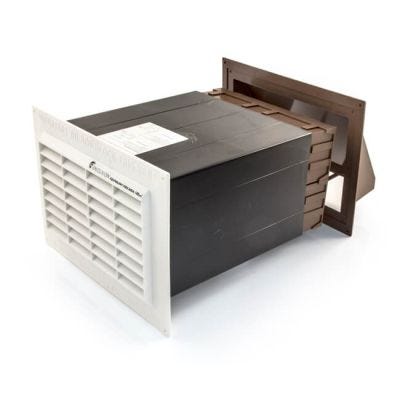

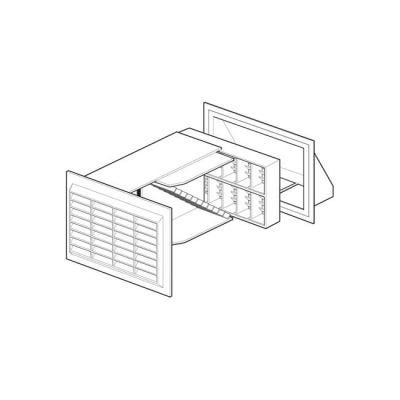

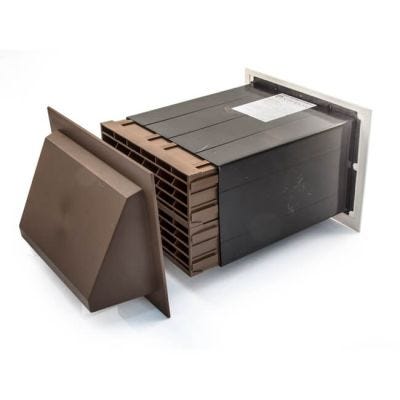

Ventilators designed to reduce draught and muffle outside noises to the maximum. Daylight does not show through them. Simple three part assembly (cowls - liner - and internal louvre). Designed to be fitted with screws or mastic. All Draughtbusters meet BS 5440 : Part 2 : 2000 - BS 493 and BS 5871 : Part 3 requirements.
Fits through a 9" x 6" opening. Equivalent free area of min. 100cm2
Wall thickness : 280 mm to 330 mm (11" to 13").
For appliances up to 27 kW Net,(30 kW Gross).
Fits through a 9" x 6" opening. Equivalent free area of min. 100cm2
Wall thickness : 280 mm to 330 mm (11" to 13").
For appliances up to 27 kW Net,(30 kW Gross).
Product Specification
| Brand | Draughtbuster |
| Standards | BS 5440 Part 2:2000 - BS 493 and BS 5871 Part 3 |
| Colour | Terracotta |
| Dimensions | External Grille 195 mm x 270 mm , Internal Grille 194 mm x270 mm |
| Free Area | 100 cm² |
| Free Area Size | 100 cm² |
| Length | 280 to 330 mm |
| Tube Diameter | 145 mm x 220 mm (9"x6") |
| Type | Two Brick Ventilator |
