Part Number: 7688

Draughtbuster DB93 Ventilator - Terracotta/White

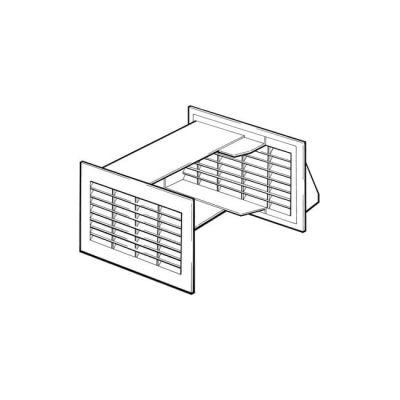

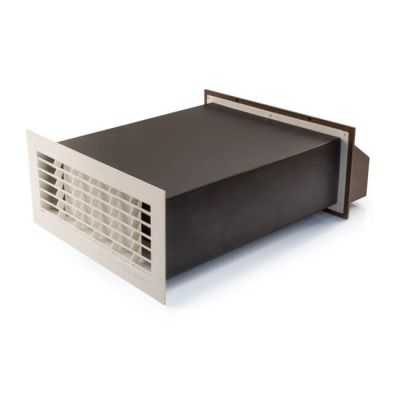

Ventilators designed to reduce draught and muffle outside noises to the maximum. Daylight does not show through them. Simple three part assembly (cowls - liner - and internal louvre). Designed to be fitted with screws or mastic. All Draughtbusters meet BS 5440 : Part 2 : 2000 - BS 493 and BS 5871 : Part 3 requirements.
Fits through wall with removal of one brick. Equivalent free area: 65 cm².
Wall thickness: 280 mm to 360 mm (11" to 14").
Appliance rated input: 20 kW Net,(22 kW Gross).

Product Specification

Brand Draughtbuster
Standards BS 5440 Part 2:2000 - BS 493 And BS 5871 Part 3
Colour Terracotta
Dimensions External Grille 120 Mm X 266 Mm , Internal Grille 124 Mm X 270 Mm
Free Area 65 Cm²
Free Area Size 65 Cm²
Length 280 To 360 Mm
Size 280 Mm - 360 Mm
Tube Diameter 90 Mm X 230 Mm (9"x3")
Type One Brick Ventilator

Ask a Question

Questions and Answers - FAQ

Draughtbuster DB93 Ventilator - Terracotta/White

£15.42 £12.85
£15.42 £12.85
