Part Number: 17095
Manufacturer's Part Number: 5012049

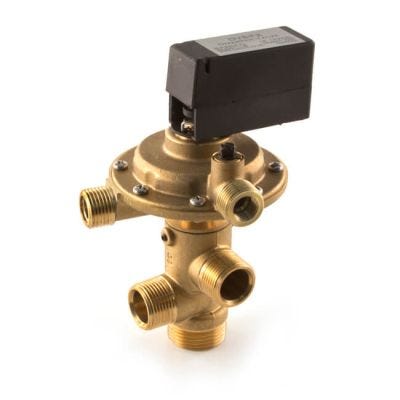

DVS-F2 Diverter Valve
Diverter valves for named combi boilers, listed in the specification.
Supplied with two single pole double throw micro switches (10 A) and washers.

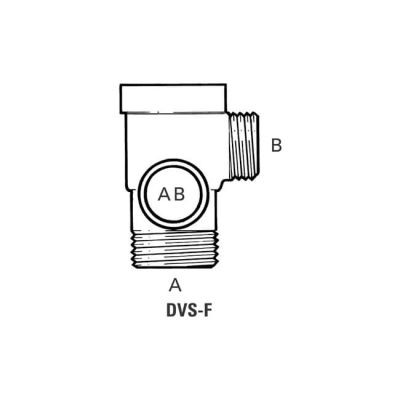

In the diagrams :
A (1" BSP) goes to the heating system,
B (3⁄4" BSP) goes to the boiler,
AB (3⁄4" BSP) is the inlet common path
Five washers for the connections are supplied.
|Boiler Type||Ravenheat CF10/20, CF10/25, RSF 820/20 Boilers.|
|Suitable Application||Diverter Valves For Named Combi Boilers|
|Type||Diverter (Shunt) Valve|
