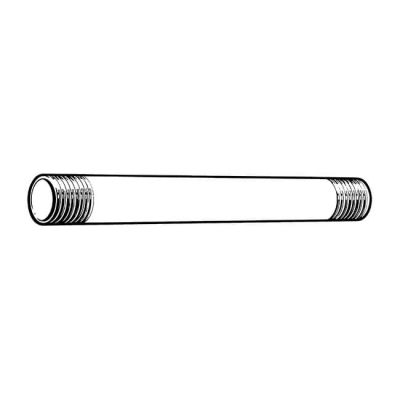

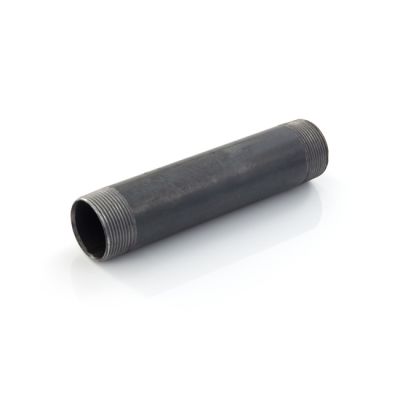

Extended Nipple Mild Steel - 8" x 2" Black

Name: Extended Nipple Mild Steel - 8" x 2" Black
Brand: Unbranded
SKU: 23920
Price: 12.99 GBP
Availability: InStock

8" x 2" BSP Black mild steel barrel nipple, manufactured to BS EN 10241 from tube to BS EN 10255 (BS 1387), heavy pattern.
All threads are BSP taper male to ISO 7/1.
Supplied by and/or manufactured by BS EN ISO 9001 registered companies.

BSP Explained

BES Ltd., British Standard Pipe Thread Identification Chart.

BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.

Further advice can be obtained from our Technical Team if you are still unsure.

BSP Size	Actual Diameter of Thread
1/8"	9.728 mm
1/4"	13.157 mm
3/8"	16.662 mm
1/2"	20.995 mm
3/4"	26.441 mm
1"	33.249 mm
1 1/4"	41.910 mm
1 1/2"	47.803 mm
2"	59.614 mm
2 1/2"	75.184 mm
3"	87.884 mm

The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.
