Part Number: 20249

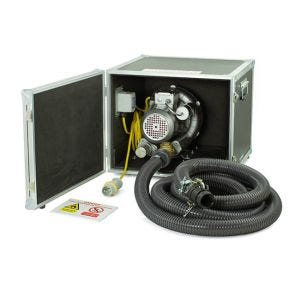

Fan Purge Unit, Gas to Air - 200mm 110V
The GEA professional gas to air fan purge unit enables purging and decommissioning to be carried out safely according to the Institution of Gas Engineers and Managers documents UP/1 and 1A. Each unit is fitted with a check valve on the fan to prevent gas reversing into the fan assembly. When used in conjunction with GEA’s gas purge unit it enables pipework and meters to be purged to air in a safe manner.
The complete package is contained in a durable aluminium framed box.
Suitable for purging : up to 200 mm dia. pipework.
The complete package is contained in a durable aluminium framed box.
Suitable for purging : up to 200 mm dia. pipework.
WEIGHT & SIZE RESTRICTIONS
Some delivery options may not be available
Product Specification
Dimensions | 545 x 550 x 445 mm |
Hose Diameter | 50 mm |
Kit Contents | 5 m of 2" hose, 1.1/2" inlet connection |
Pressure | Up to 200 mbar |
Suitable Application | Purging & decommissioning up to 200 mm diameter pipe. |
Type | Purge Unit |
Weight | 45 kg |
Working Pressure | Max. 200 mbar |
