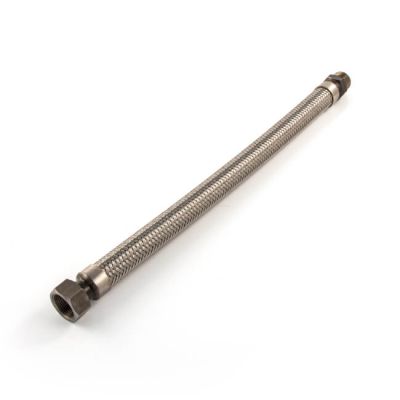

Flexible Connector Braided 450mm 1/2"F Swivel x TM

£8.34 £6.95
£8.34 £6.95
More product options available

Part Number: 14866

Flexible Connector Braided 450mm 1/2"F Swivel x TM

Braided fan coil flexible connectors can be used for the final connection to fan coil units. They are manufactured to reduce possible vibration and offer a high degree of flexibility allowing misalignment of pipework.
Specification :
Hose : Stainless steel 321 annular corrugated and a single stainless steel AISI 304 external wire braid.
End connections : Manufactured in carbon steel.
Safe working pressure : Fitting size : 1/2" 70 bar, 3/4" 50 bar, 1" 40 bar.

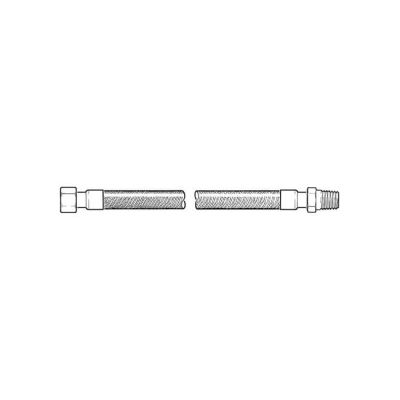

P/Ns 14863 to 14871 : One end terminated with a BSP swivel female complete with a flat seat. Other end with a BSPT hexagon fixed male connection.
P/Ns 14872 to 14880 : Both ends terminated with BSPT hexagon fixed male connections.

Product Specification

Brand Pamet
Colour Stainless Steel
Connection BSP F Swivel X BSP TM
Finish Stainless Steel Braid
Fittings F Swivel X TM
Material Stainless Steel Corrugated
Max. Operating Pressure Working: 70 Bar
Suitable Application Braided Fan Coil Flexible Connectors Can Be Used For The Final Connection To Fan Coil Units. They Are Manufactured To Reduce Possible Vibration And Offer A High Degree Of Flexibility Allowing Misalignment Of Pipework.
Type Flexible Connector
