Part Number: 15794

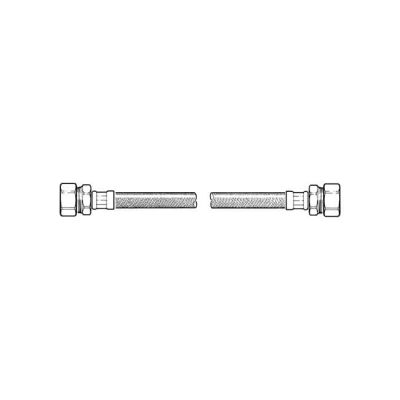

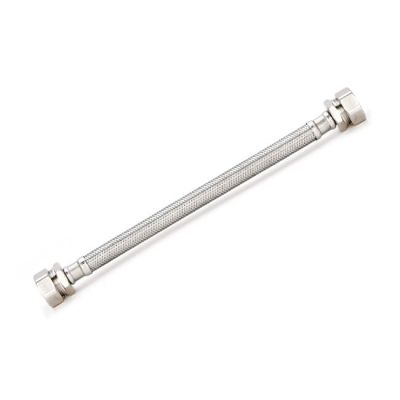

Flexible Connector - 15mm x 15mm x 300mm
10 mm bore, 15 mm compression x compression.
Stainless steel braided, EPDM rubber flexible connector with olives and brass couplings.
Suitable for potable and non-potable applications.
Stainless steel braided, EPDM rubber flexible connector with olives and brass couplings.
Suitable for potable and non-potable applications.
See More >
Specification
Bore | 10 mm |
Colour | Stainless Steel |
Connection | Compression |
Finish | Stainless Steel Braid |
Fittings | Compression |
Length | 300 mm |
Material | EPDM |
Max. Operating Pressure | Working: 15 bar |
Max. Temperature | 85°C |
Size | 15 x 15 mm |
Suitable Application | Suitable for potable and non-potable water applications. |
Temperature & Pressure Range | 12 bar at 20° C, 6 bar at 65° C |
Type | Flexible Connector |
