Part Number: 8738

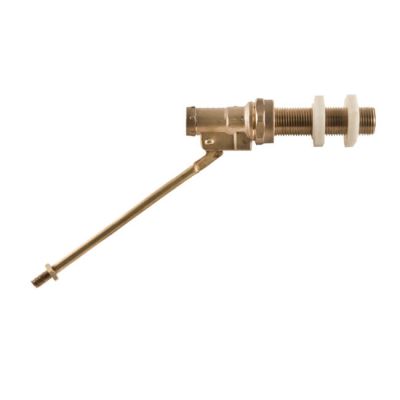

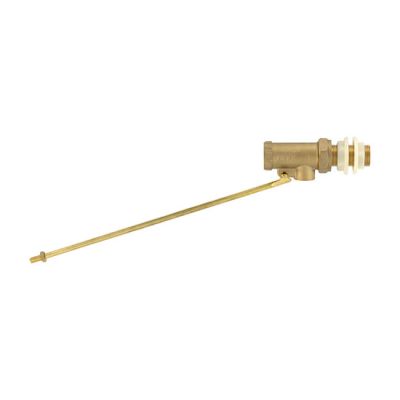

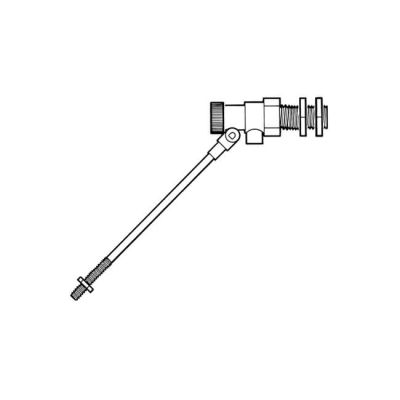

Float Ball Valve Brass Piston - Side Entry 1/2"
Float operated ball valve to BS 1212 Part 1.
The body and arm are brass, with a brass piston and plastic seat.
Float arm is 260 mm (10.1/4") long and accepts a 5/16" threaded float (float is not supplied).
Plastic floats:
11465 - 92 mm dia x 107 mm long with a 5/16" thread.
8763 - 4.1/2" dia. plastic float with a 5/16" threaded brass insert.
11456 - 5" x 5/16" plastic float with brass insert.
11457 - 6" x 5/16" plastic float with brass insert.
Copper floats:
15438 - 4.1/2" x 5/16".
8764 - 6" x 5/16".
The body and arm are brass, with a brass piston and plastic seat.
Float arm is 260 mm (10.1/4") long and accepts a 5/16" threaded float (float is not supplied).
Plastic floats:
11465 - 92 mm dia x 107 mm long with a 5/16" thread.
8763 - 4.1/2" dia. plastic float with a 5/16" threaded brass insert.
11456 - 5" x 5/16" plastic float with brass insert.
11457 - 6" x 5/16" plastic float with brass insert.
Copper floats:
15438 - 4.1/2" x 5/16".
8764 - 6" x 5/16".
Product Specification
| Standards | BS 1212-1 |
| Accessories | Requires Float with 5/16" thread |
| Additional Product | Requires float 5/16" thread |
| Connection | 1/2" BSP |
| Entry | Side |
| Operation | Float |
| Piston Material | Brass |
| Pressure Range | High |
| Seat Material | Plastic |
| Size | 1/2" |
| Type | Tank Float Valve |
