Part Number: 23765

Manufacturer's Part Number: EL75372

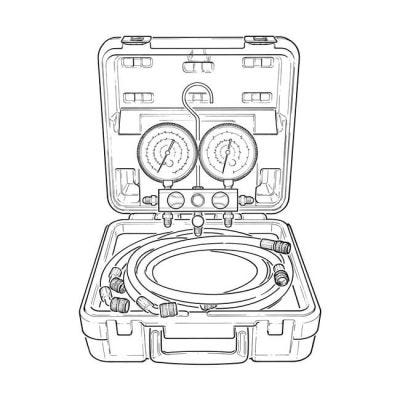

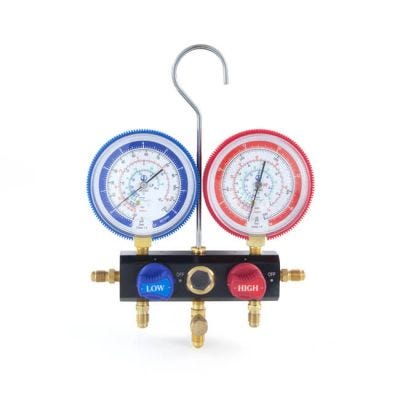

Four Valve Manifold with Charging Lines - Multi Gas

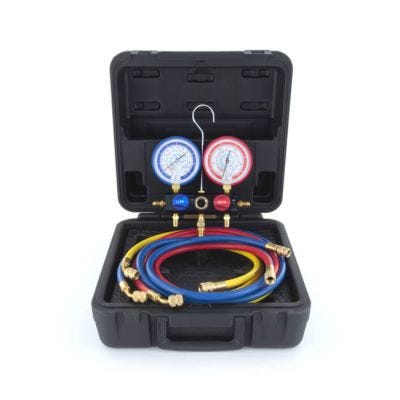

High quality aluminium manifold body with sight glass, 1/4 turn valves, 80 mm Bourdon type gauges, hook, 3 charging lines 72" long. Supplied in a sturdy plastic case.

Product Specification

Accessories 3 Charging Lines - Connections 2 X 1/2" - 20 UNF (blue And Red) And 1 X 1/4" SAE (yellow), Length 72" (1.8 M), Carry Case.
Brand Javac
Standards EN 837-T3
Connection 1/2" - 20 UNF. 1/4" SAE
Gauge Bourdon Type
Gauge Manifold Four Way
Material Aluminium Manifold
Pressure Bar/p.s.i.
Suitable Application Air Conditioning And Refrigeration System Charging.
Temperature Scale R134A, R22, R404A, R407C
Type Manifold
