Part Number: 22122

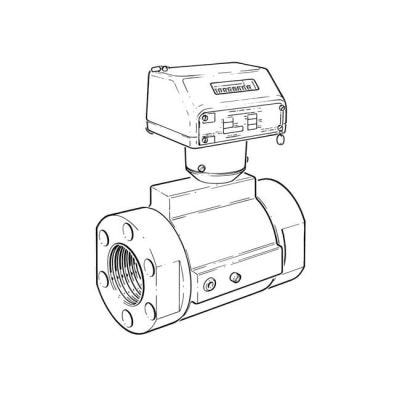

G40 Turbine Quantometer Gas Meter - 1.1/2"
Threaded aluminium body.
Turbine meter suitable for natural gas and LPG with a low pressure drop to comply with the requirements of IGEM/UP/2. A low frequency pulse output transmitter is fitted which can be connected to a remote display or BMS. The meter can be installed vertically or horizontally and the index assembly can be rotated. The meter is suitable for internal and external installation, however it must be protected from direct weather influences. Install the meter after a pipe length of 5D upstream and 3D downstream.
Threads to ISO 228.
|Accuracy||Qt ÷ Qmax <±1.5%. Qmin ÷ Qt <±3.0%|
|Flow Rate||6 To 65 M³/h|
|Max. Operating Pressure||16 Bar|
|Meter Type||Turbine Quantometer|
|Nominal Bore||1.1/2" DN40|
|Suitable Application||For Natural Gas And LPG With A Low Pressure Drop Requirement.|
|Temperature Range||Working: -20 To 60°C|
