Part Number: 22785

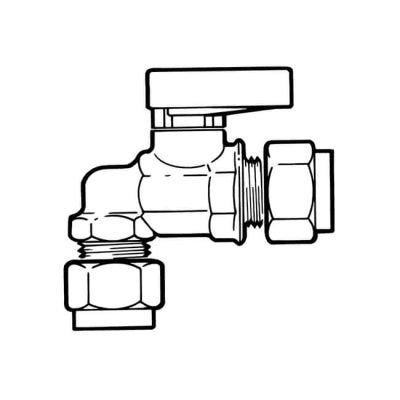

Gas Ball Valve - 10mm Compression Elbow Lever Handle
Compact 10mm compression elbow plated brass ball valve with yellow coded operation lever. The handle may easily be removed to expose a screwdriver slot and spanner flats for alternative operation.
Manufactured and tested to BS EN 331 by a BS EN ISO 9001 registered company.
For Natural Gas, LPG, water, oils and compressed air.
Manufactured and tested to BS EN 331 by a BS EN ISO 9001 registered company.
For Natural Gas, LPG, water, oils and compressed air.
See More >
Specification
| Approved by | BS EN ISO 9001 & BS EN 331 |
| Application | For Natural Gas, LPG, water, oils and compressed air. |
| Connection | Compression |
| Finish | Plated |
| Full Bore | No |
| Handle | Lever |
| Handle Colour | Yellow/Black |
| Lockable | No |
| Material | Brass |
| Max. Operating Pressure | 20 bar |
| Max. Operating Temperature | 80°C |
| Size | 10 mm |
| Temperature Range | -20 to 80°C |
| Type | Lever Valve |
