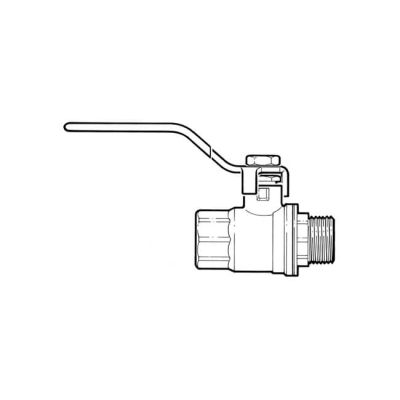

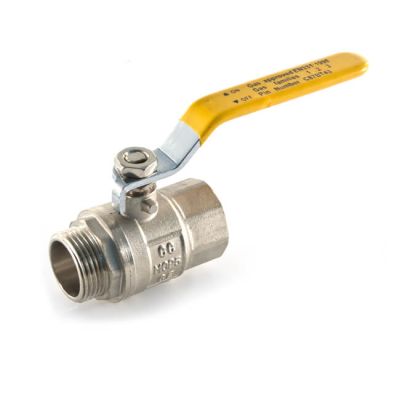

Gas Ball Valve - 3/4" F x M Yellow Lever Handle

Name: Gas Ball Valve - 3/4" F x M Yellow Lever Handle
Brand: Unbranded
SKU: 19461
Price: 7.88 GBP
Availability: InStock

BSP parallel F x M connection.

Lever action full bore ball valve, brass body, plated finish, manufactured and tested to BS EN 331 by a BS EN ISO 9001 registered company. Plated steel lever handle with yellow plastic coating.

BSP Explained

BES Ltd., British Standard Pipe Thread Identification Chart.

BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.

Further advice can be obtained from our Technical Team if you are still unsure.

BSP Size	Actual Diameter of Thread
1/8"	9.728 mm
1/4"	13.157 mm
3/8"	16.662 mm
1/2"	20.995 mm
3/4"	26.441 mm
1"	33.249 mm
1 1/4"	41.910 mm
1 1/2"	47.803 mm
2"	59.614 mm
2 1/2"	75.184 mm
3"	87.884 mm

The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.

Product Specification

Standards	BS EN ISO 9001 & EN 331
Application	Natural Gas & LPG
Connection	BSP Parallel M x F
Finish	Plated
Full Bore	Yes
Handle	Lever
Handle Colour	Yellow
Lockable	No
Material	Brass
Max. Operating Pressure	5 bar
Max. Operating Temperature	60°C
Size	3/4"
Temperature Range	-20 to 60°C
Type	Full Bore Gas Service
