Part Number: 6303

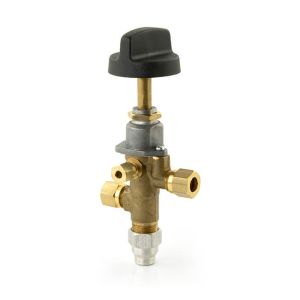

Gas Control Valve Tap with Flame Supervision Device
CE certified to the relevant requirements of EN 125, EN 126 and EN 1106 (Certificate No. E6055).
This valve has flame failure protection and will give a variable gas flow between low and full rates.
Flow rate for Natural Gas at 20 mbar. : FULL ON 0.35 m³/h.
Operating sequence : Off, Pilot, Pilot + maximum flow, Pilot + minimum flow.
Connections : inlet and outlet are for 8 mm o.d tube; pilot is for 4 mm o.d. tube; thermocouple is M8.
Fascia nut is M14 (P/N 9685).
Supplied with control knob (P/N 17375), nuts and olives.
This valve has flame failure protection and will give a variable gas flow between low and full rates.
Flow rate for Natural Gas at 20 mbar. : FULL ON 0.35 m³/h.
Operating sequence : Off, Pilot, Pilot + maximum flow, Pilot + minimum flow.
Connections : inlet and outlet are for 8 mm o.d tube; pilot is for 4 mm o.d. tube; thermocouple is M8.
Fascia nut is M14 (P/N 9685).
Supplied with control knob (P/N 17375), nuts and olives.
See More >
Specification
Standards | EN 125, EN 126 and EN 1106 |
Connection | 8 mm inlet & outlet, 4 mm pilot |
Flow Rate | FULL ON 0.35 m³/h NG at 20 mbar |
Max. Operating Temperature | 0 to 110°C |
Size | 8 mm |
Suitable Application | Decorative fuel effect fires, but are also suitable for a wide range of domestic and commercial heating and cooking appliances. For Natural Gas and LPG. |
Type | Gas Tap |
