Gas Meter Blank Off Sealing Adaptor - 1" BS 746 M

Name: Gas Meter Blank Off Sealing Adaptor - 1" BS 746 M
Brand: Unbranded
SKU: 15788
Price: 9.26 GBP
Availability: InStock

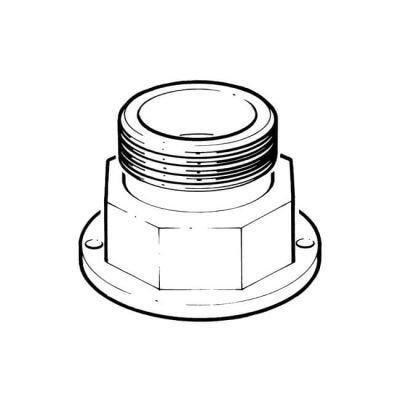

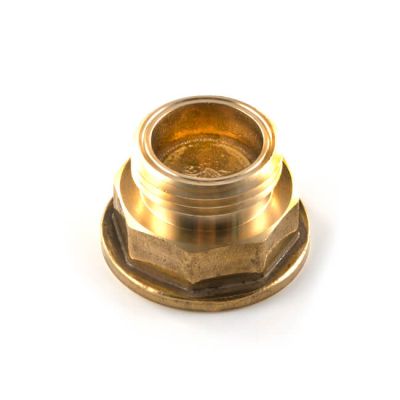

Gas Meter Blank off Sealing Adaptor 1" BS 746 M Adaptor with a solid inner panel and hole for locking wire.

Washer is supplied.

BS 746 Conversion

BES Ltd Gas Meter Union – BS 746 Thread Conversion Chart

BS 746 is the specification that applies specifically to Gas Meter Installations. The size name refers to the internal bore size of the meter unions and the ECV (main gas cock), not the thread diameter. To ensure you order the correct fittings, please measure the thread diameter of the male thread on your meter or ECV in millimetres, and then use the chart below to identify the BS 746 size.

BSP 746 Name	Actual Thread Size in mm	Nut Size (Flat to Flat) in mm
3/4"	29 mm	35 mm
1"	37 mm	42 mm
1 1/4"	44 mm	53 mm
1 1/2"	57 mm	66 mm
2"	76 mm	80 mm

Product Specification

Adaptor Type	Sealing
Connection	BS 746 M
Material	Brass
Size	1"
Suitable Application	To seal off the gas supply, perhaps prior to commissioning.
Thread Type	BS 746
Type	Sealing Adaptor
