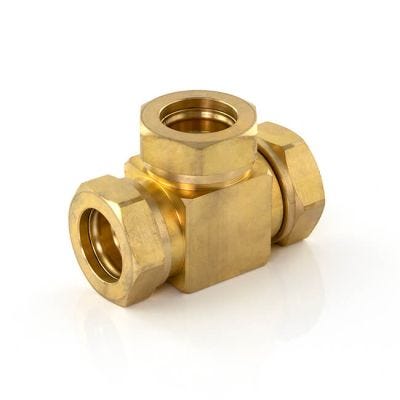

Part Number: 25074
Manufacturer's Part Number: XR2-TEU-DN20
XR2™ mechanical fittings are a tool-less flare design with metal-to-metal seal and patented Jacket-Lock®, which eliminates exposed stainless steel beyond the nut. Fitting body, bushings and nut material are brass CW603N.
All components are fully re-useable.
Approved in accordance with BS EN 15266.
For Natural Gas and LPG.
Please note, this product is not compatible with our previous range of Gastite® DN20 fittings or pipes.
All components are fully re-useable.
Approved in accordance with BS EN 15266.
For Natural Gas and LPG.
Please note, this product is not compatible with our previous range of Gastite® DN20 fittings or pipes.
Product Specification
Brand | Gastite® |
Standards | BS EN 15266 |
End Dimension (A) | DN20 |
End Dimension (B) | DN20 |
End Dimension (C) | DN20 |
Material | Brass CW603N |
Max. Operating Pressure | 500 mbar |
Size code for pipe | DN20 |
Type | Mechanical Tee |
