Part Number: 23114
Manufacturer's Part Number: 98707851

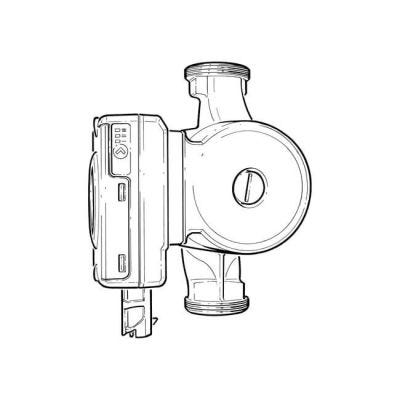

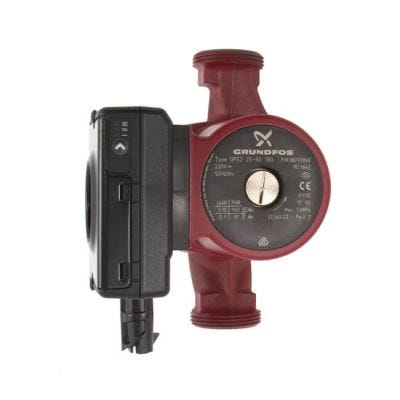

Grundfos UPS2 32/80 Central Heating Pump Circulator
Grundfos UPS2 32/80 Central Heating Pump Circulator is a high-efficiency 8 metre head, permanent-magnet motor pump designed for optimal performance for your system. This EuP/ErP compliant pump boasts impressive energy efficiency, making it a top choice for modern and energy-conscious applications.
The dynamic design of the pump caters to a range of systems, suitable for both commercial heating and domestic hot water recirculation, making it a versatile solution for diverse needs. Thanks to the design it allows the pump to be fitted in tight installations where space is a factor.
With a 8-metre maximum head value and a liquid temperature range from 2°C to 95°C. It features a 2" BSP M connection with port-to-port distance of 180 mm.
Equipped with permanent-magnet motor (ECM Technology) which offers variable speed control, suitable for circulation of clean heating water according to VDI 2035. With 3-speed control for, allowing customisation based on specific needs.
The motor also provides powerful and reliable operation but also significantly reduces energy consumption. With an impressive energy efficiency index (EEI) of lower than 0.23 and built to meet the latest EuP/ErP directive (Energy-related Products) standards. This pump ensures compliance with energy efficiency regulations, contributing to a sustainable and eco-friendly operation.
The Grundfox UPS2 pump head is engineered to operate efficiently at a maximum pressure of 10 bar. This durability ensures reliable performance, even in high-pressure environments.
With a standard power supply of 230V at 50Hz, the UPS2 is compatible with common electrical systems, making installation straightforward. This ensures broad application and ease of use in a variety of heating setups.
- Highly effective and energy-efficient
- Permanent-magnet motor (ECM technology)
- 8 metre maximum head value
- EuP/ErP approval for an economical system
- 2" BSP M connection
- 180mm port-to-port measurement
- Variable speed modes
- Operates on a standard 230 V AC, 50 Hz power supply
- Handles a temperature range from 2 to 95°C
|Approved by||EuP/Erp 2015|
|Ambient Temperature||0 to 55°C|
|Connection||2" BSP M|
|Energy Efficiency Index||≤ 0.23|
|Input Power||11 to 140 W|
|Liquid Temp. Range||2 to 95° C|
|Max. Head||8 m|
|Max. Operating Pressure||10 bar|
|Port To Port||180 mm|
|Power Supply||230 V, 50 Hz|
|Type||Central Heating Circulator|
